A sub-1.2 mm flexible FSR sensing layer that disappears into the pillow

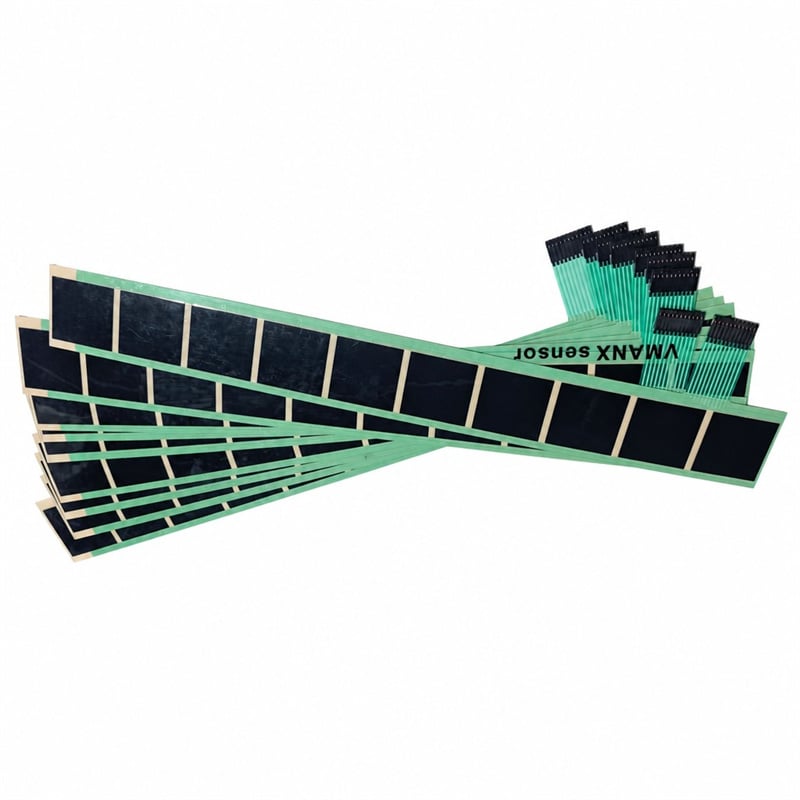

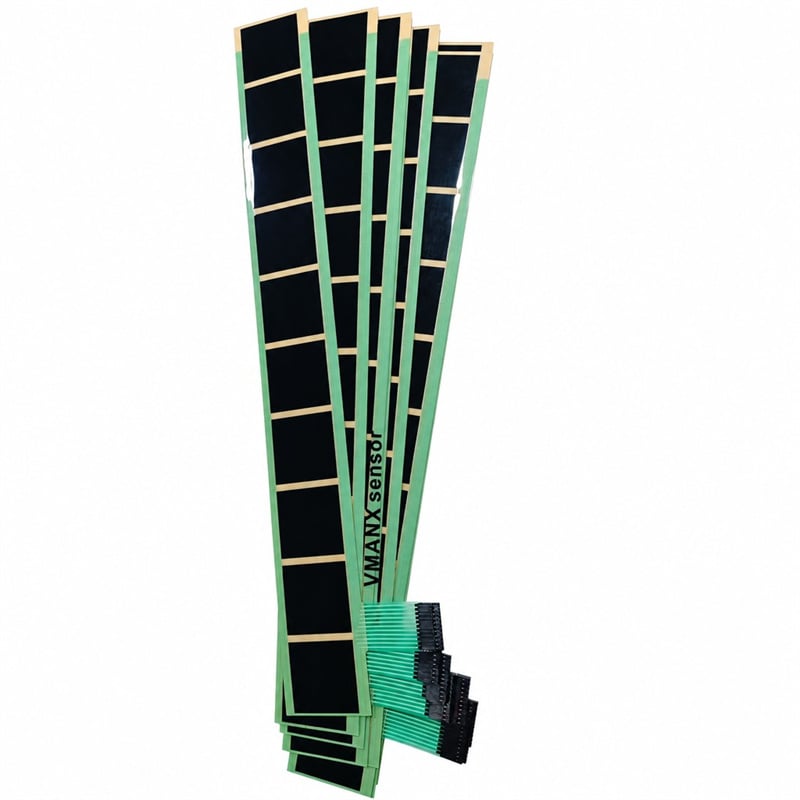

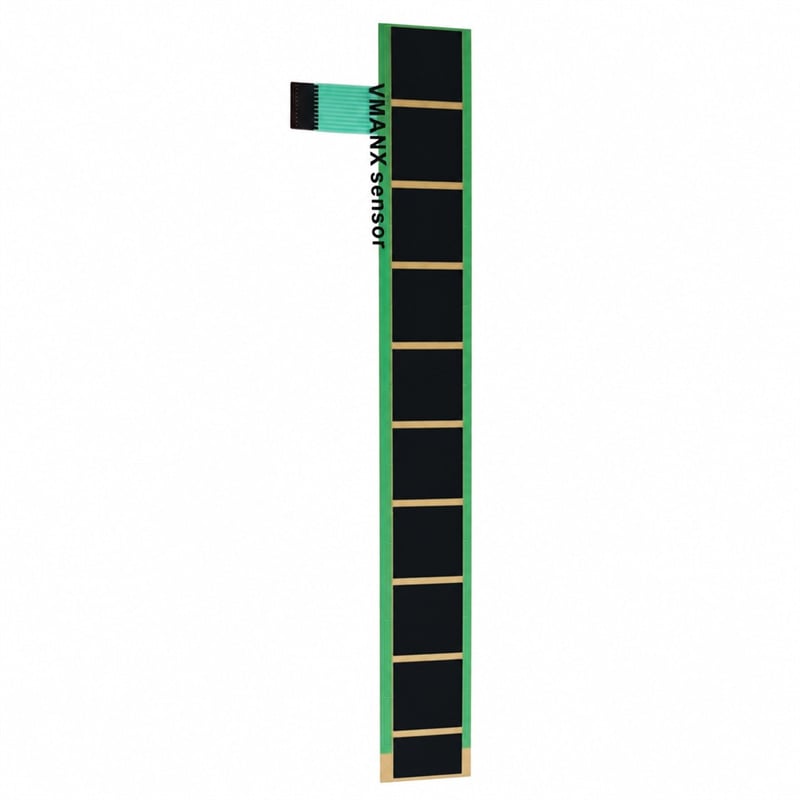

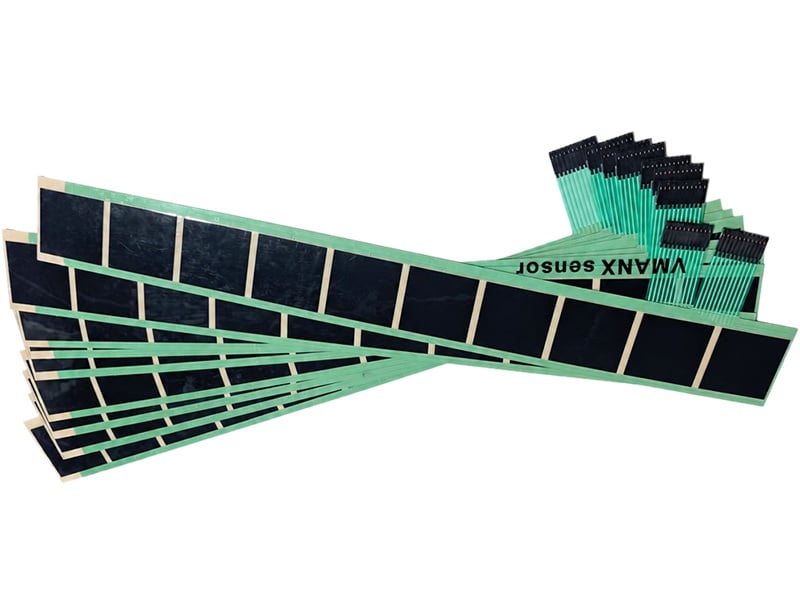

LINEAR FSR STRIP ARRAY

PET / green solder-mask flexible strip with 10 discrete sensing pads and an FFC tail. Captures head load, posture shift and micro-movement.

• 10 sensing pads per strip

• Width from 18 mm

• FFC 1.0 mm pitch

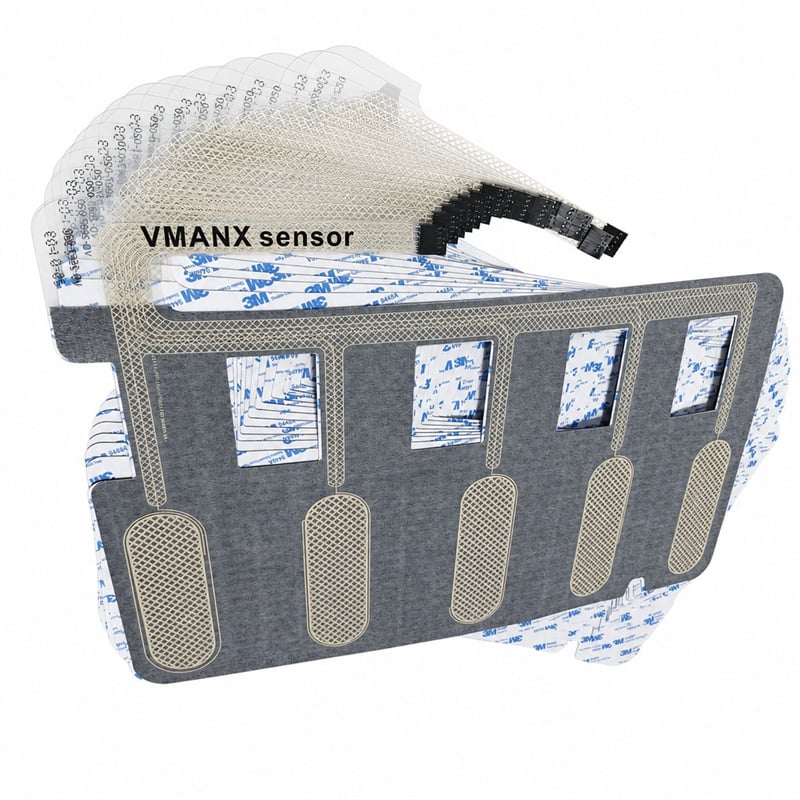

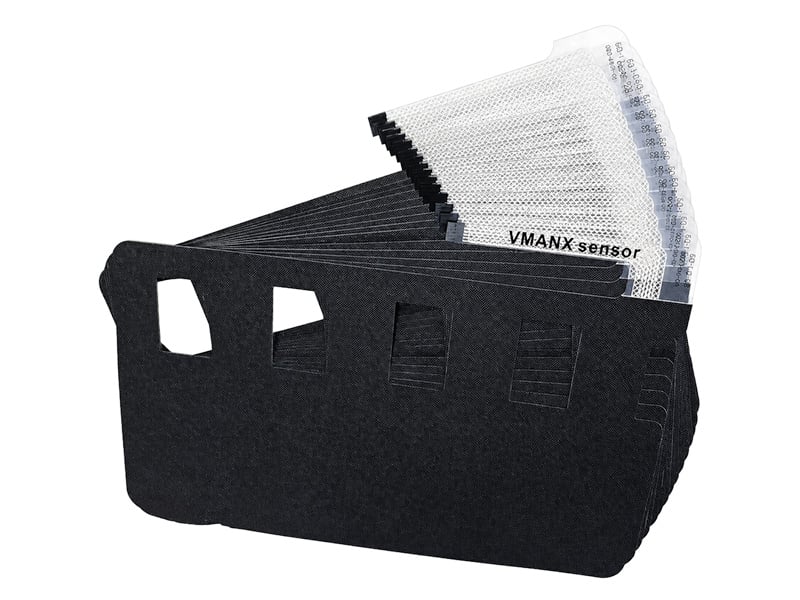

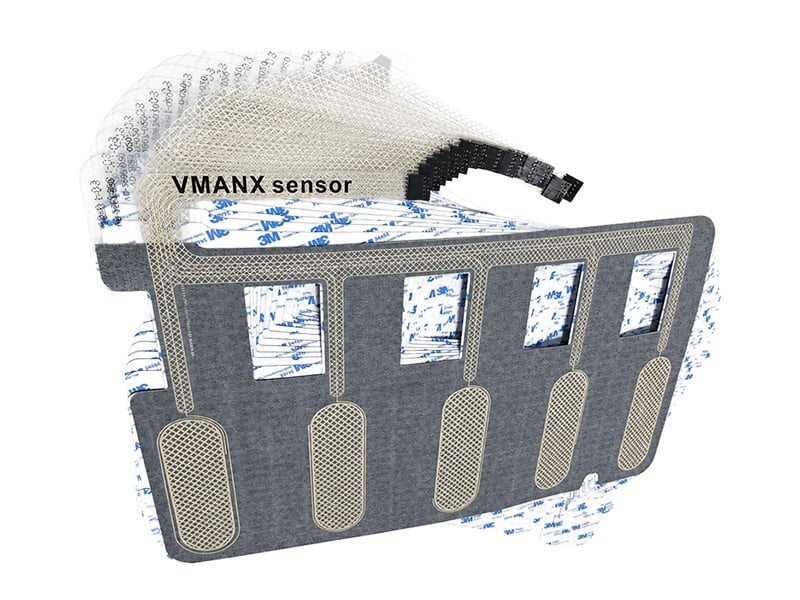

SHAPED MULTI-ZONE MAT

Non-woven laminated matrix with spacer-mesh isolation and 3M adhesive mounting. Free-form outline cut to your product shape.

• Free-form die-cut outline

• Spacer-mesh isolation

• 3M 9448A mounting

Three Signal Domains, One Layer

A single printed sensing layer resolves static load, slow posture change and micro-vibration - pressure mapping, posture logic and vital signs from the same hardware.

01 PRESSURE DISTRIBUTION

Resistive matrix resolves head and neck load into a live heat map with peak-zone detection for pressure relief and pillow-height fitting.

• Range 0 - 100 kPa

• Peak-zone alerting

• Relief score output

02 POSTURE & ANTI-SNORE

Load-pattern classification separates supine, lateral and prone, then triggers the customer actuator when snore-risk posture persists.

• 4-state posture logic

• Turn-interval logging

• Trigger output API

03 RESPIRATION & HEART RATE

Ballistocardiographic micro-vibration is filtered from the same channels to recover breathing and pulse fully contact-free.

• Respiration 6 - 40 rpm

• Heart rate 35 - 150 bpm

• Contact-free pickup

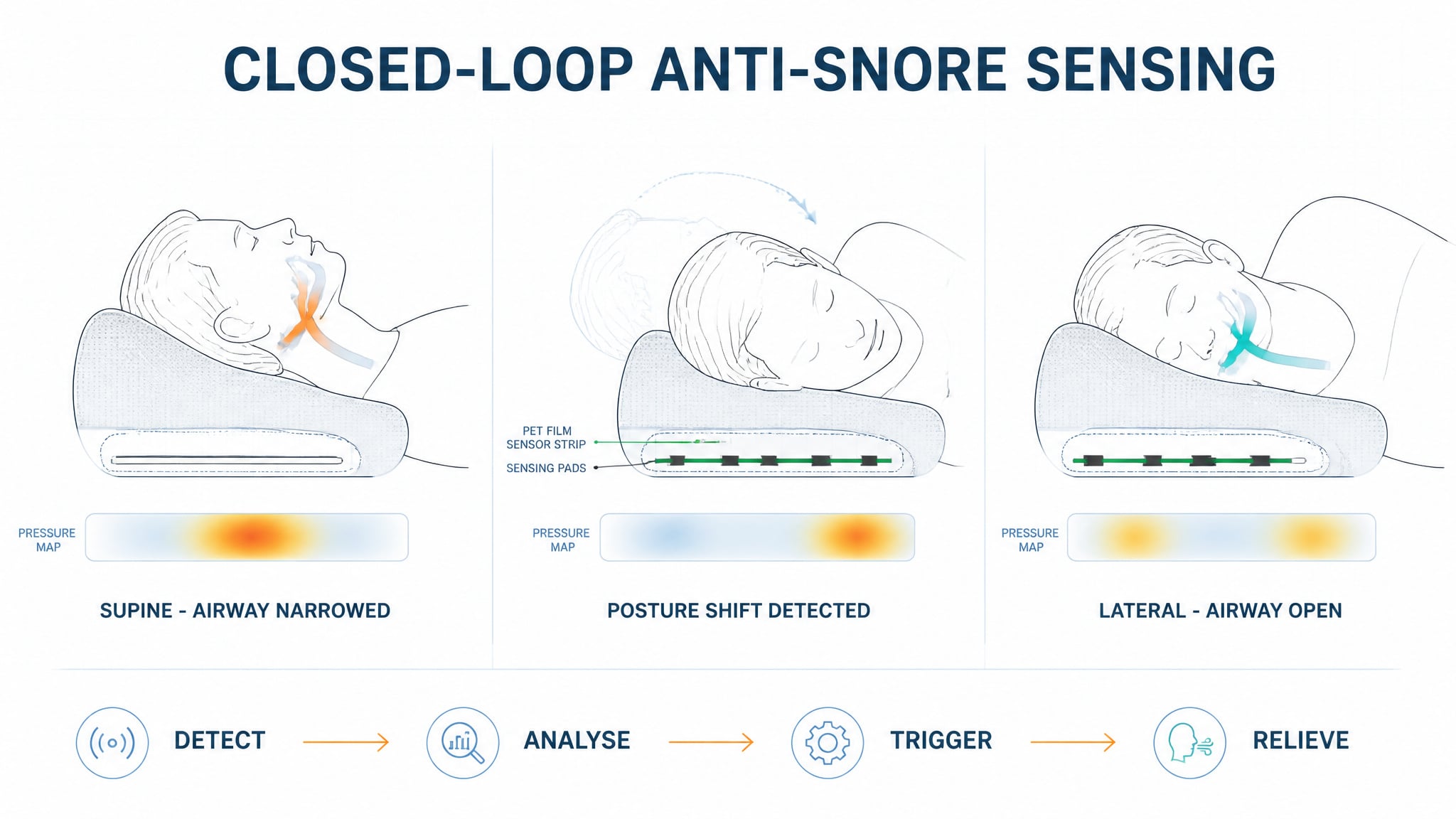

Detect The Posture, Not Just The Sound

Acoustic-only products react after the noise. A pressure layer sees the posture that collapses the airway, which is what makes closed-loop intervention possible.

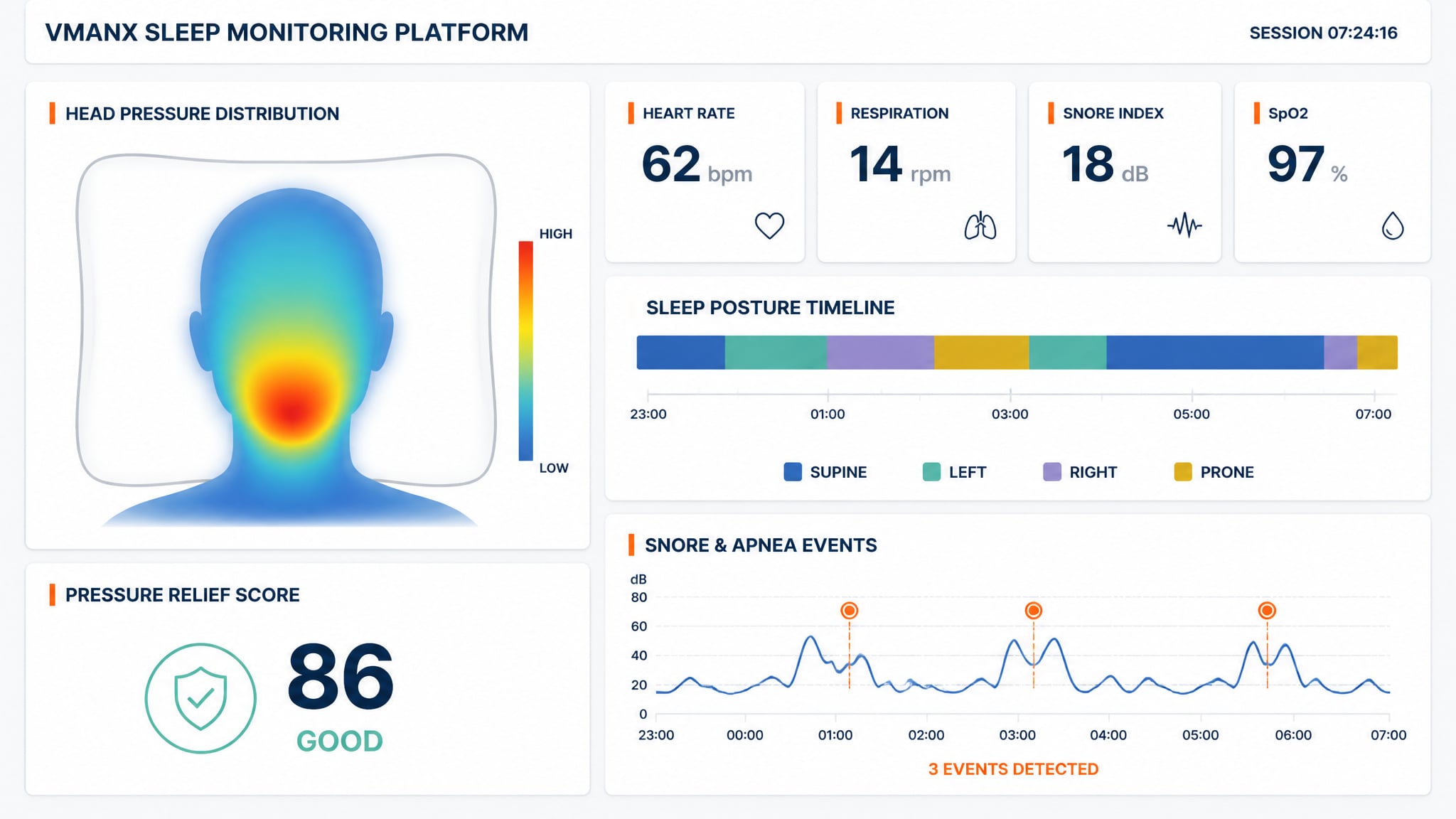

Host Monitoring Platform Included

Bundled host software renders the pressure heat map with vital-sign values, posture timeline and snore events. Full protocol and SDK released for integration.

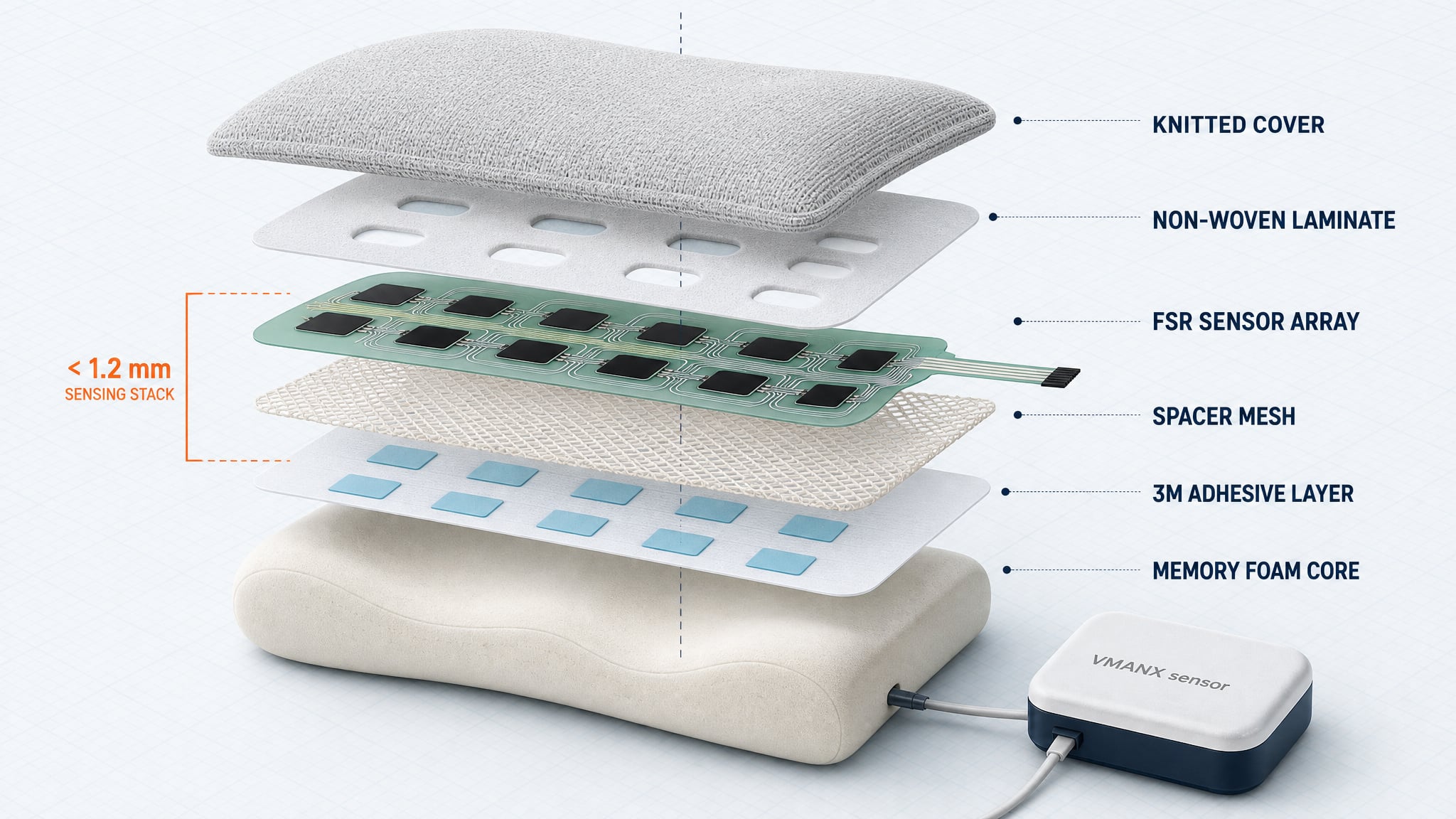

Under 1.2 mm Total Build Height

The sensing stack laminates into the pillow without changing its feel - no rigid board, no hard edge under the head.

Baseline configuration shown; pad count, active area, outline, connector and firmware are customised per project.

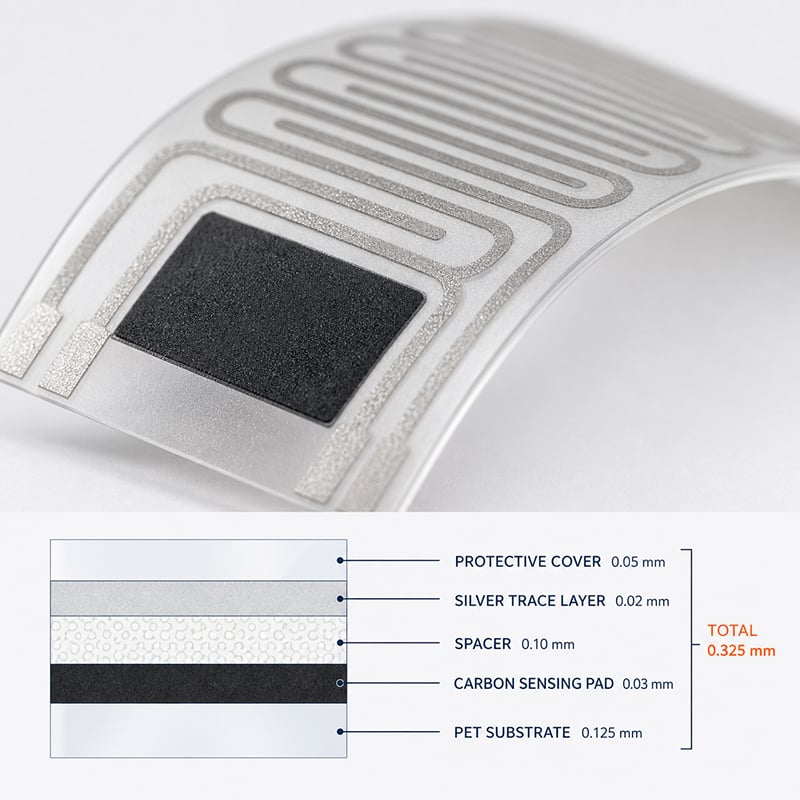

Silver and carbon conductive inks are screen-printed onto flexible film in-house, then 100 % electrically and optically inspected before lamination.

IN-HOUSE PRINTING

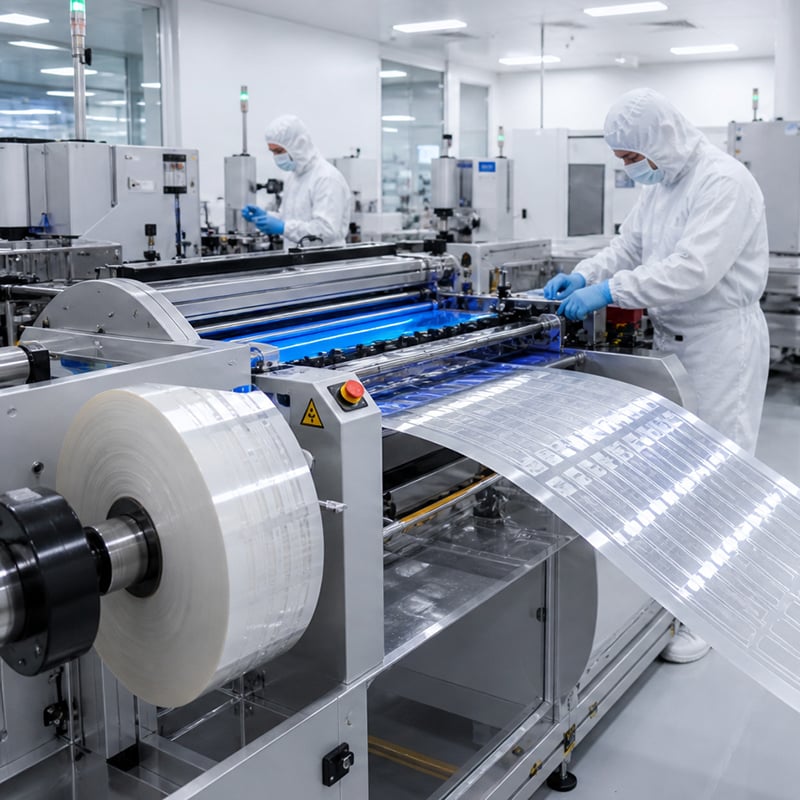

Roll-to-roll screen printing of silver / carbon traces

PRECISION LAMINATION

Multi-layer alignment within +/- 0.10 mm

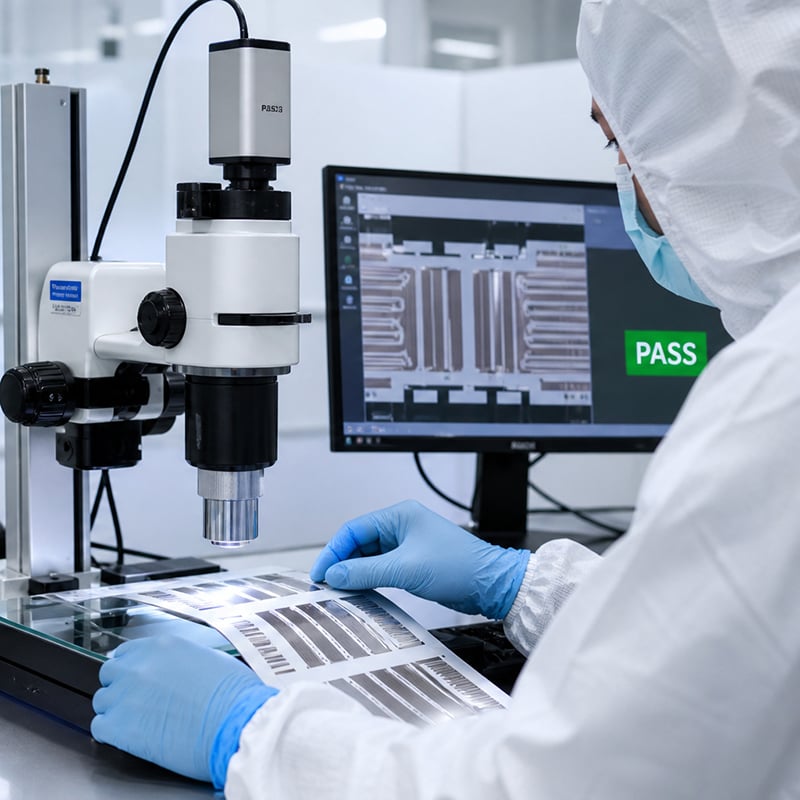

100 % INSPECTION

Electrical continuity and optical trace verification

CALIBRATION BENCH

Every unit pressure-calibrated before shipment

One Platform, Four Markets

The same sensing platform is tuned per market - comfort analytics, care-home alarm logic, clinical resolution and retail demonstration.

Built To Medical Device Standards

Manufactured under a medical-device quality management system with biocompatible skin-contact materials and full substance compliance documentation.

ISO 13485:2016

Medical QMS

ISO 10993

Biocompatibility

RoHS / REACH

Substance Compliance

Certification documentation is issued per project scope and provided during technical review.

For OEM use. End-device certifications such as CE MDR and FDA clearance are held by the customer placing the finished product on the market.

OEM / ODM

Pad layout, active area, outline and connector to your drawing.

ALGORITHM PORT

Pressure, posture and vital-sign algorithms ported to your platform.

UI CUSTOMISATION

Host software re-skinned with your brand and report layout.

SAMPLE & PILOT

Samples in 10 - 15 days, pilot production in 25 - 30 days.
