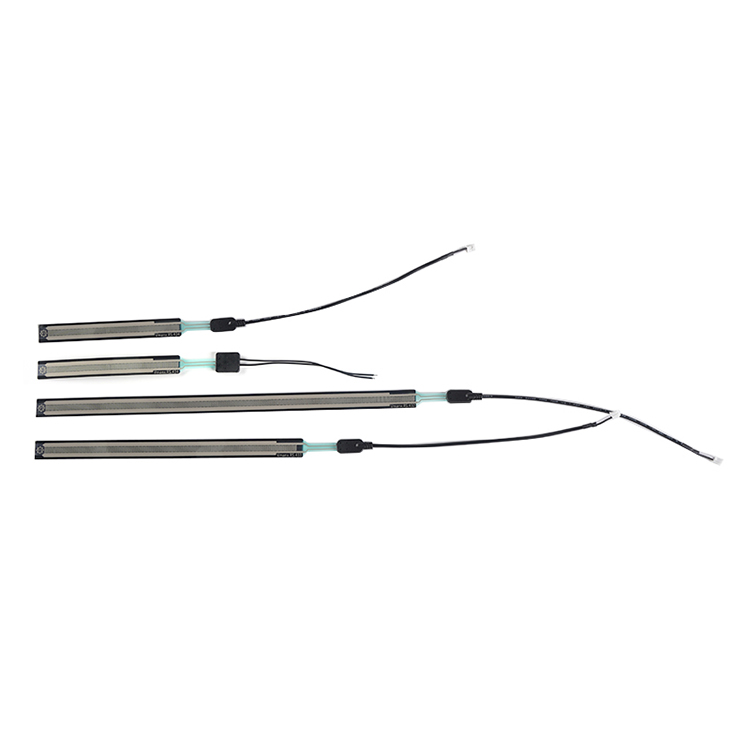

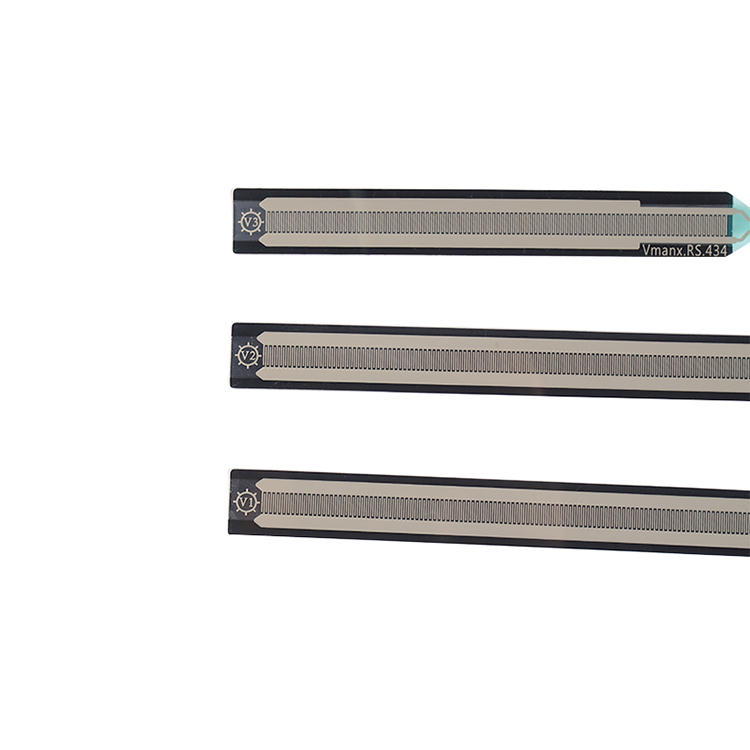

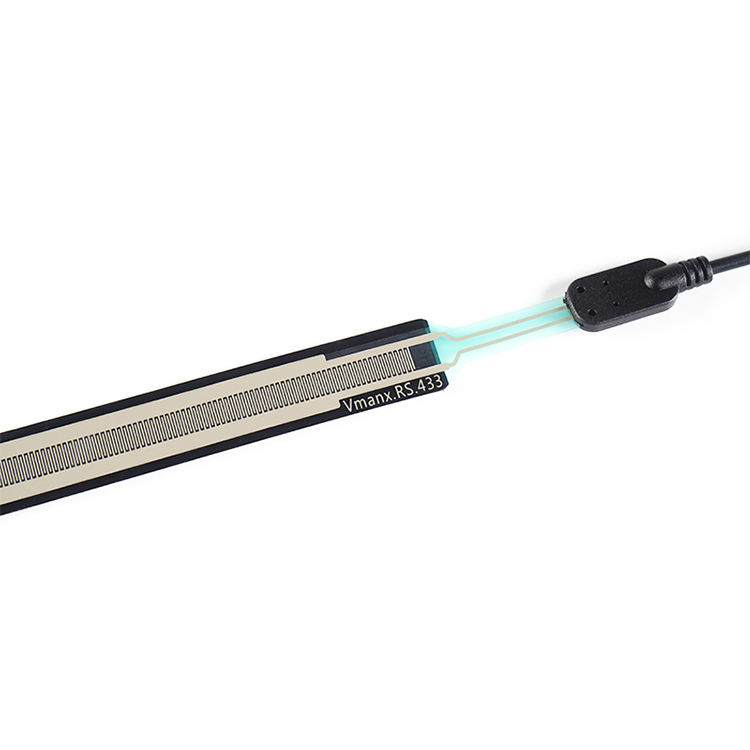

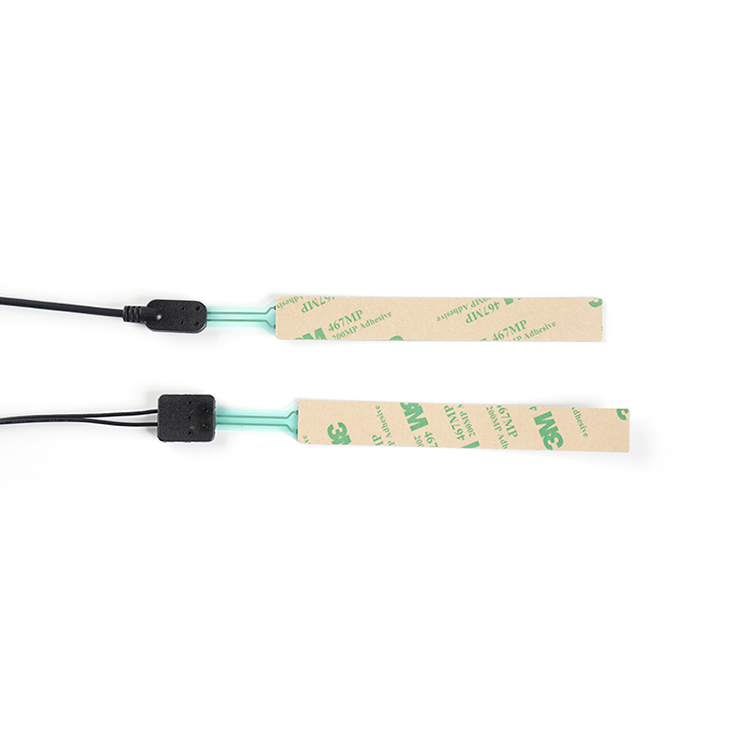

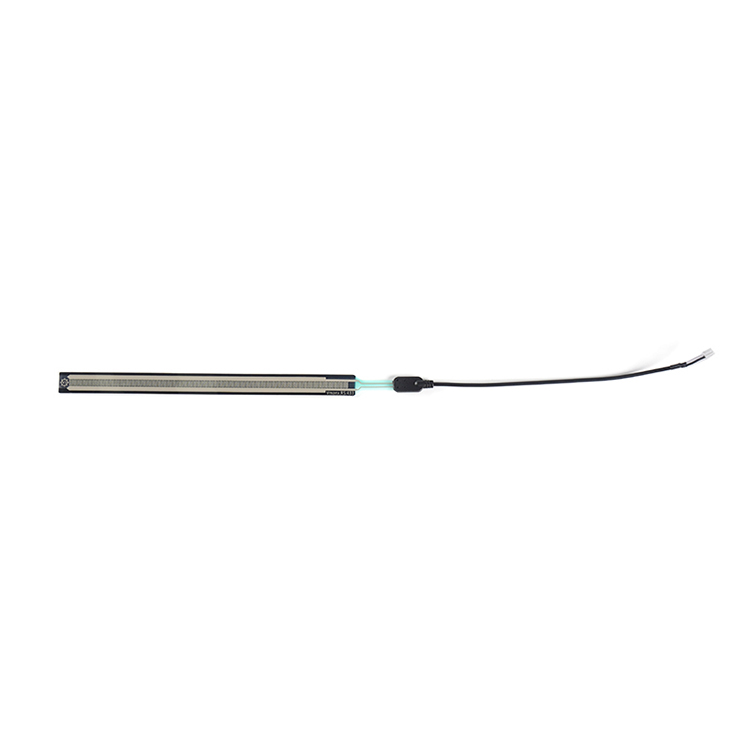

Resistance-type pressure-sensitive membrane sensor

Application Program: Health Care、Medical Bed、Smart Devices、 Rehabilitation Equipment、Electronic Pen、Mechanical Acquisition

• Working Voltage : ≤5.5VDC
• Working Temperature : -20℃~+80℃
• Storage Temperature : -25℃~+85℃
• Working Humidity : 45%~85%
• Pressure Sensing Range : 20g~10kg Or More
• Trigger Force : 20g,When The Default Resistance Value Is Less Than 200KΩ
• Thickness : 0.47mm
• Non Triggered Resistance : Greater Than 10MΩ
• Activation Time : Less Than0.01S
• Durability : More Than 1 Million Times
