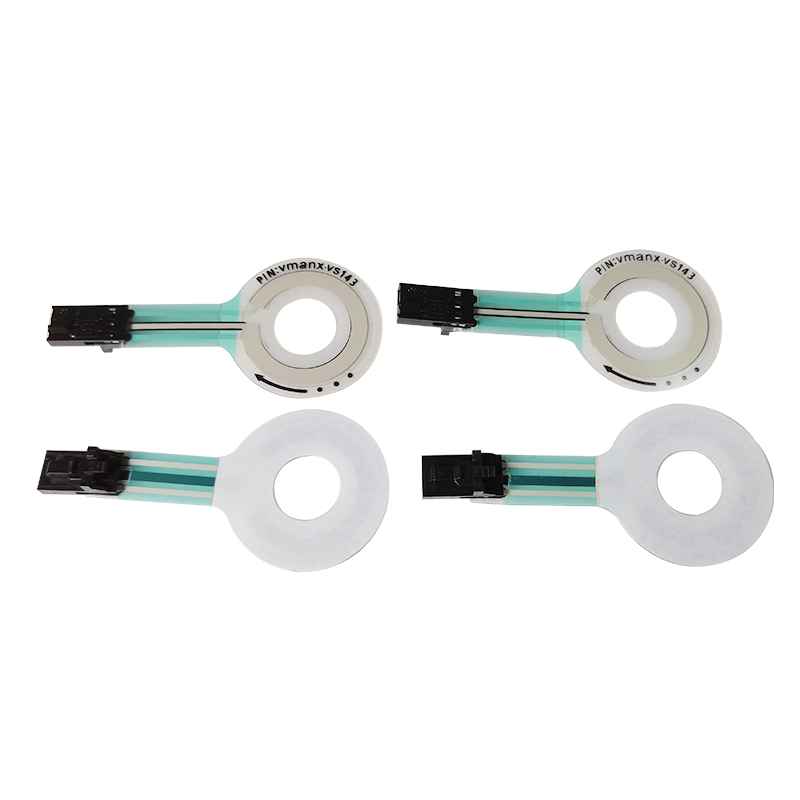

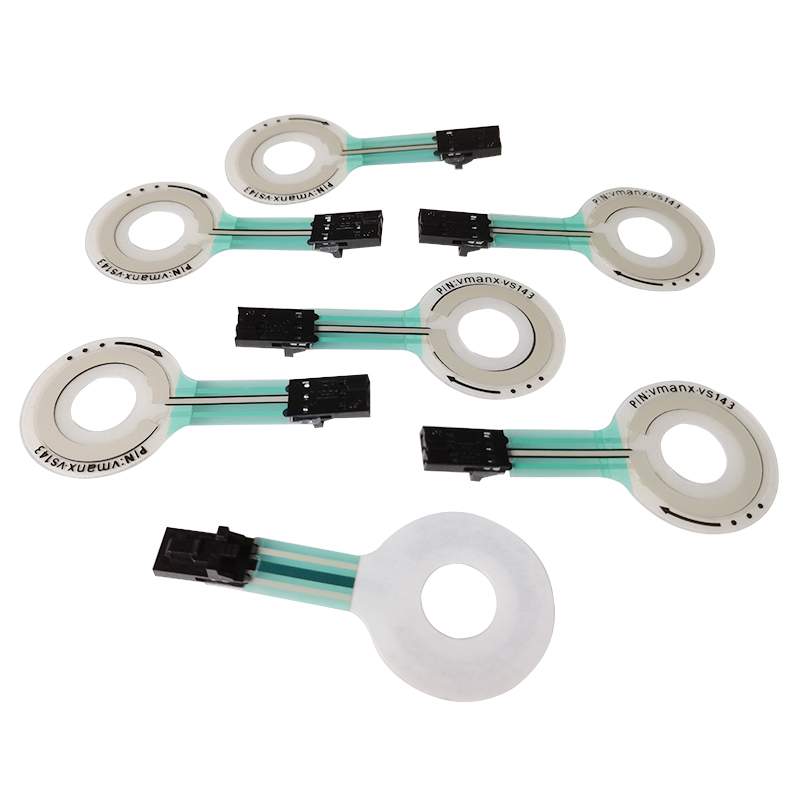

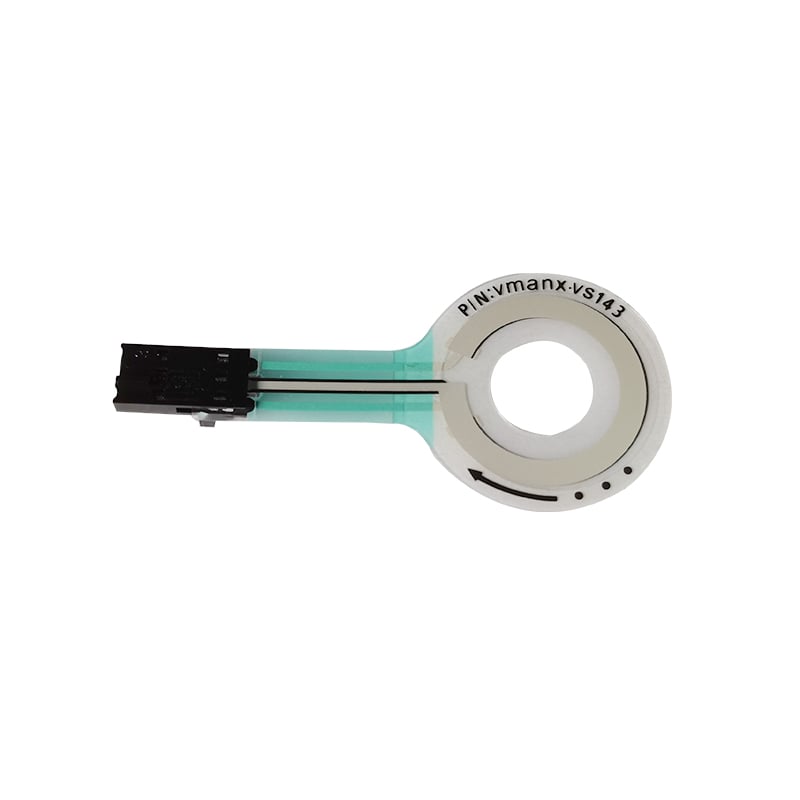

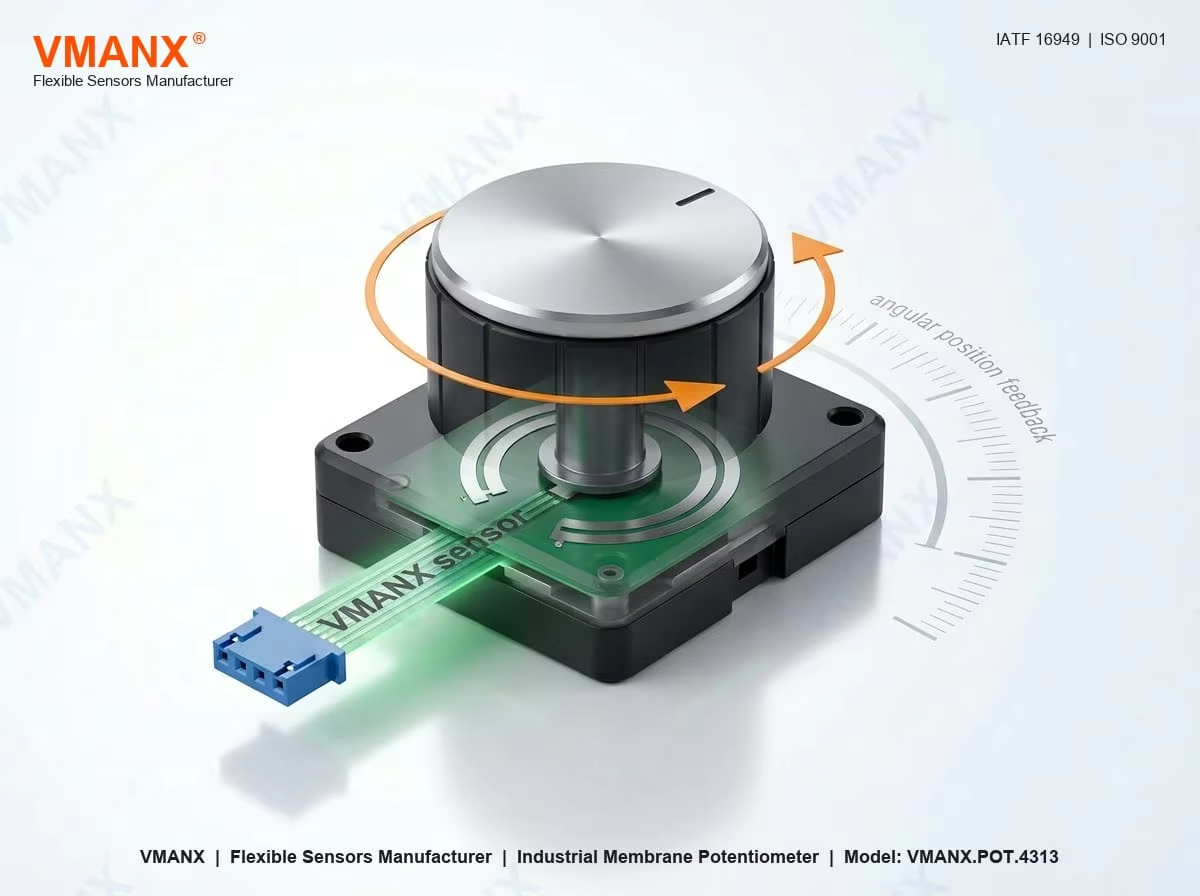

| QUICK REFERENCE DATA | |

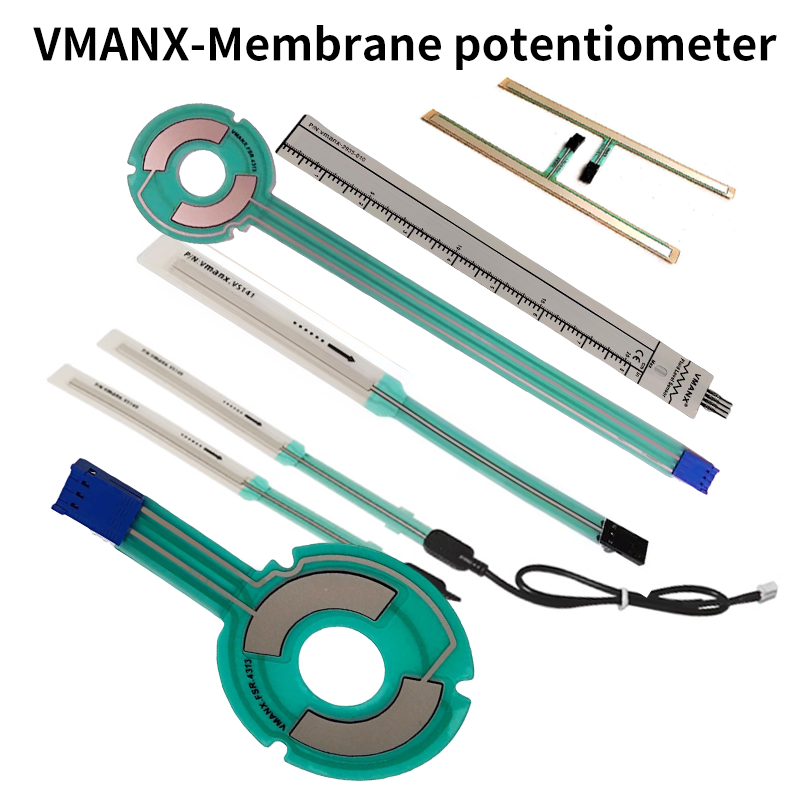

| Sensor type | LINEAR or ROTATIONAL, conductive plastic |
| Output type | Output by connector |
| Market appliance | Industrial |
| Dimensions | 1mm (thickness max.) |
| ELECTRICAL SPECIFICATIONS | |||
| PARAMETER | POT-10 | POT-14 | POT-30 |
| Total resstance (Rn) | 5.0kΩ | 8.5kΩ | 4.0kΩ |
| Tolerance on Rn | ±30% | ||
| Temperature coefficient | -300 ppm/℃±300 ppm/℃ | ||
| Collector/ track current (lc) | ≤1mA | ||
| Recommended current Ic | ≤100uA | ||
| Recommended loadimpedance | ≥100Rn | ||
| MECHANICAL SPECIFICATI | ONS | |||
| PARAMETER | POT-10 | POT-14 | POT-30 | |

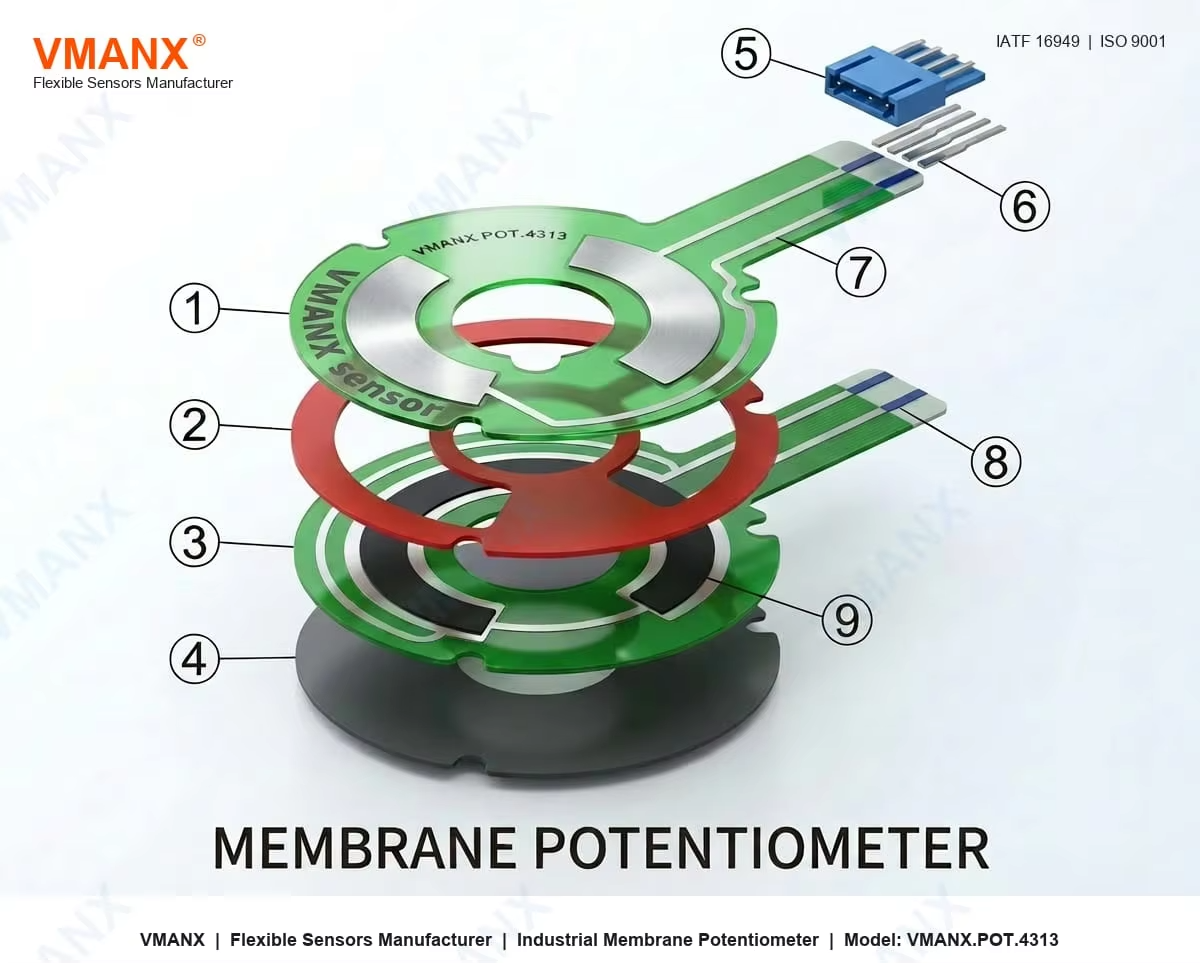

| Design | Flexible insulating films | Flexible insulating films | Flexible insulatingfilms | |
| Mechanical travel | Electrical continuity travel | Electrical continuity travel | Electrical continuity travel | |
| Backlash | <0.1mm | <0.1mm | <0.3℃ | |
| Mounting | With double-sided adhesive on flat,clean,and dry support | |||
| Speed displacement | ≤1.5m/s | |||
| Drive | Force≥0.3N | Torque≥1N cm | ||
| Protection class (NFC 20 010) | IP66 (electrical con | nection and plug excluded) | ||
| Maximum alignment fault | ±1mm | -- | ||
| PERFORMANCE | |||
| PARAMETER | POT-10 | POT-14 | POT-30 |
| Life | >3M cycles(depending on chosen wiper) | ||
| Operating temperature range | -10℃ to+50℃ | ||
| Storage temperature range | -40℃ to +50℃ | ||
| Support | Flat,clean,and dry | ||
| MODEL | TYPE |
POT-10:THEORETICAL ELECTRICAL TRAVEL(mm) POT-14: THEORETICAL ELECTRICAL TRAVEL(mm) POT-30: EXTERNAL DIAMETER(mm) |
TYPE | SHAPE | WIRE | CONNECTOR | INDUCTIONSTROKE |
| POT-10 | 10=Width | 193 | Industrial | Customizable | Customizable | can be selectedas needed | Customizable |
| POT-14 | 14=Width | 86113165 | Industrial | Customizable | Customizable | can be selectedas needed | Customizable |
| POT-30 | 30=Diameter | 30 | Industrial | Customizable | Customizable | can be selectedas needed | Customizable |
