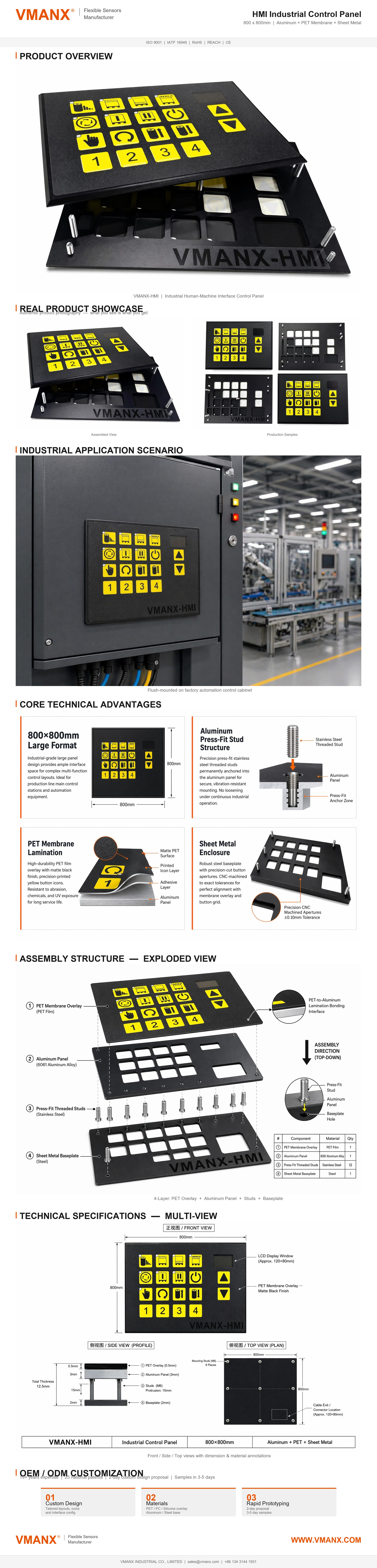

HMI Industrial Control Panel

800×800mm Large Format

Industrial-grade large panel design provides ample interface space for complex multi-function control layouts. Ideal for production line main control stations and automation equipment.

Aluminum Press-Fit Stud Structure

Precision press-fit stainless steel threaded studs permanently anchored into the aluminum panel for secure, vibration-resistant mounting. No loosening under continuous industrial operation.

PET Membrane Lamination

High-durability PET film overlay with matte black finish, precision-printed yellow button icons. Resistant to abrasion, chemicals, and UV exposure for long service life.

Sheet Metal Enclosure

Robust steel baseplate with precision-cut button apertures. CNC-machined to exact tolerances for perfect alignment with membrane overlay and button grid.

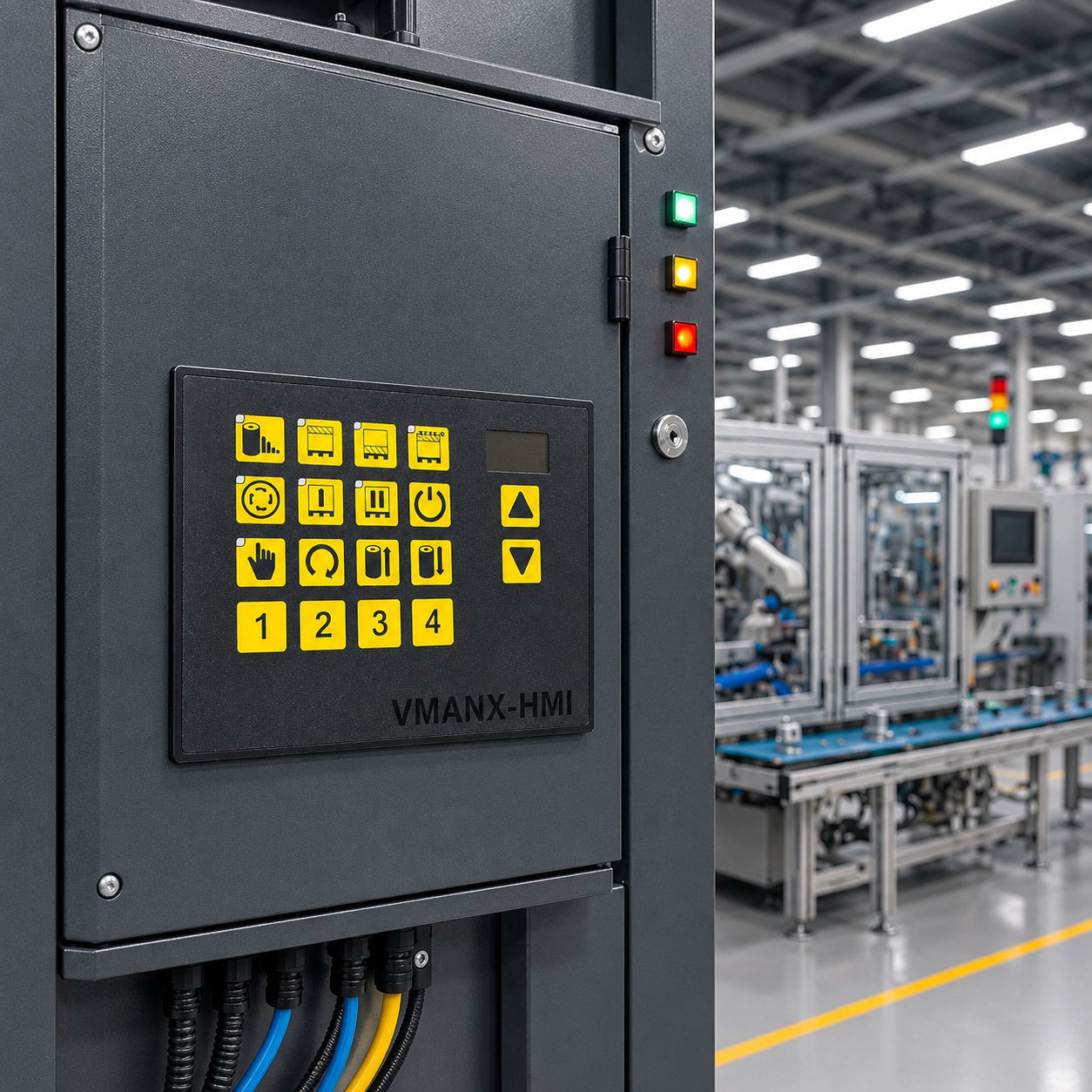

Flush-mounted on factory automation control cabinet

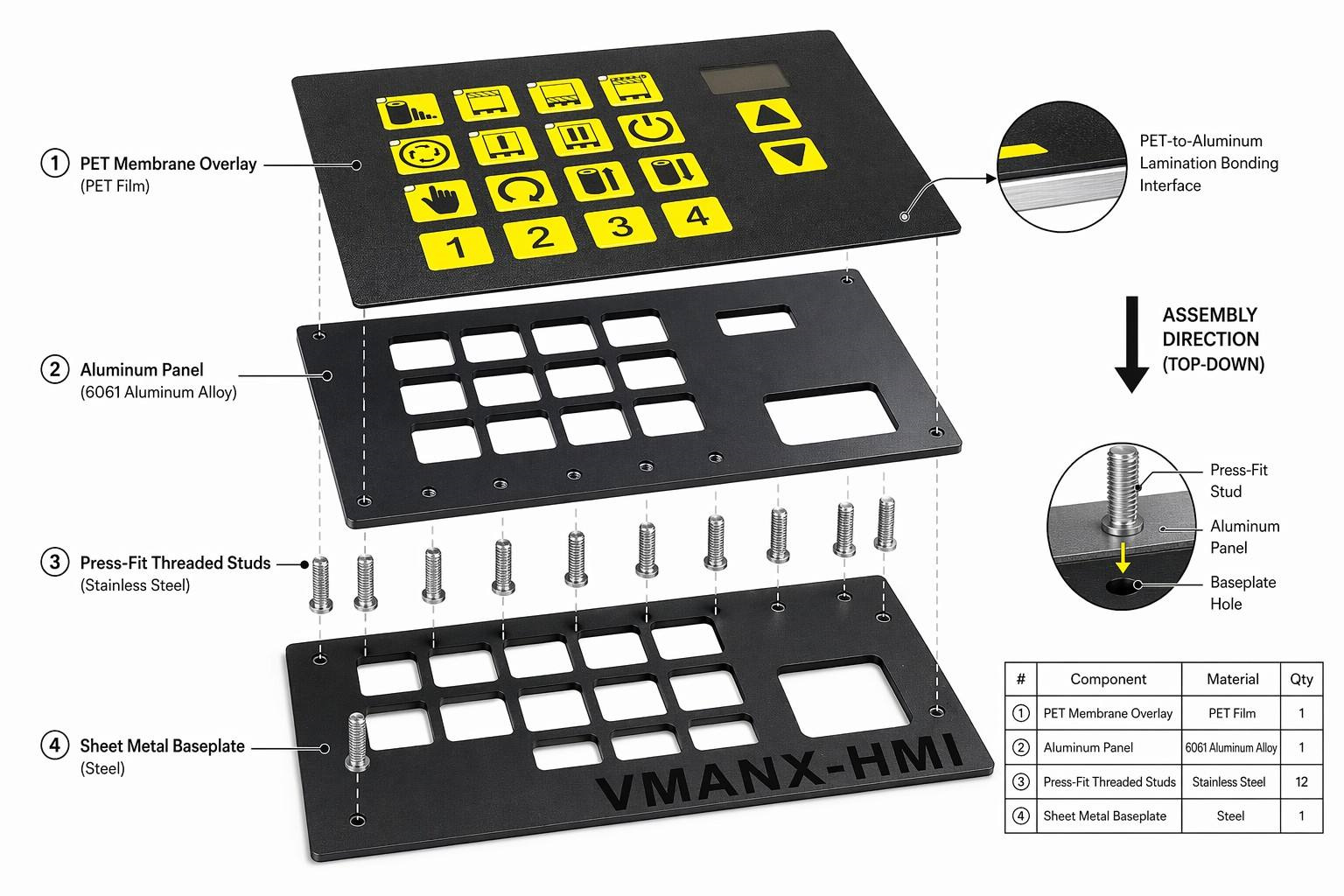

4-Layer: PET Overlay + Aluminum Panel + Studs + Baseplate

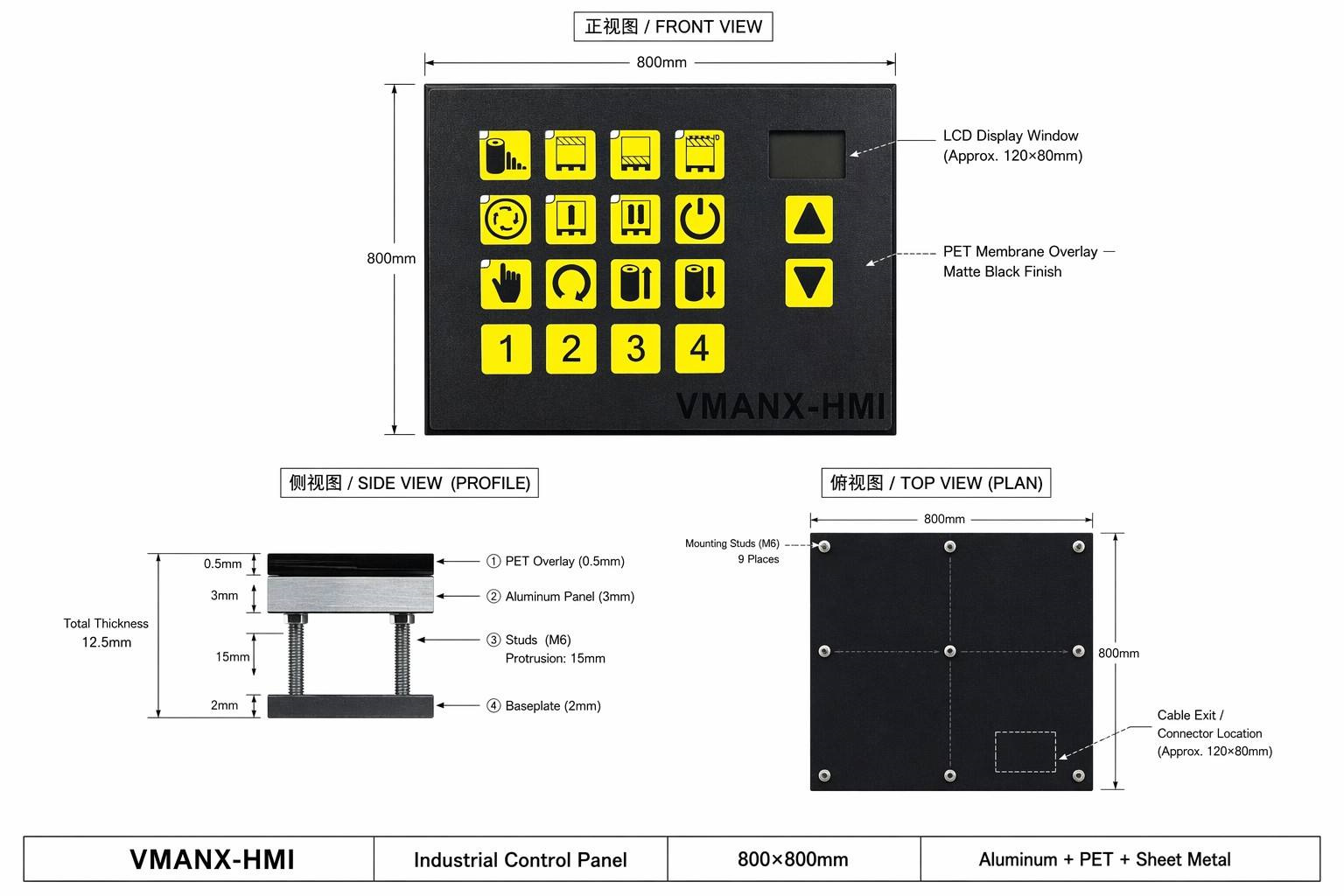

Front / Side / Top views with dimension & material annotations

10+ Years Expertise | 25 national patents | 2-day custom design proposal | Samples in 3-5 days

01 Custom Design

Tailored layouts, icons and interface sorting

02 Materials

PET / PC / Silicone overlay

Aluminum / Steel base

03 Rapid Prototyping

2-day proposal

3-5 day samples
