IME Touch Control Panel with IML Surface and PET Sensor - VMANX

Product Overview & Key Features

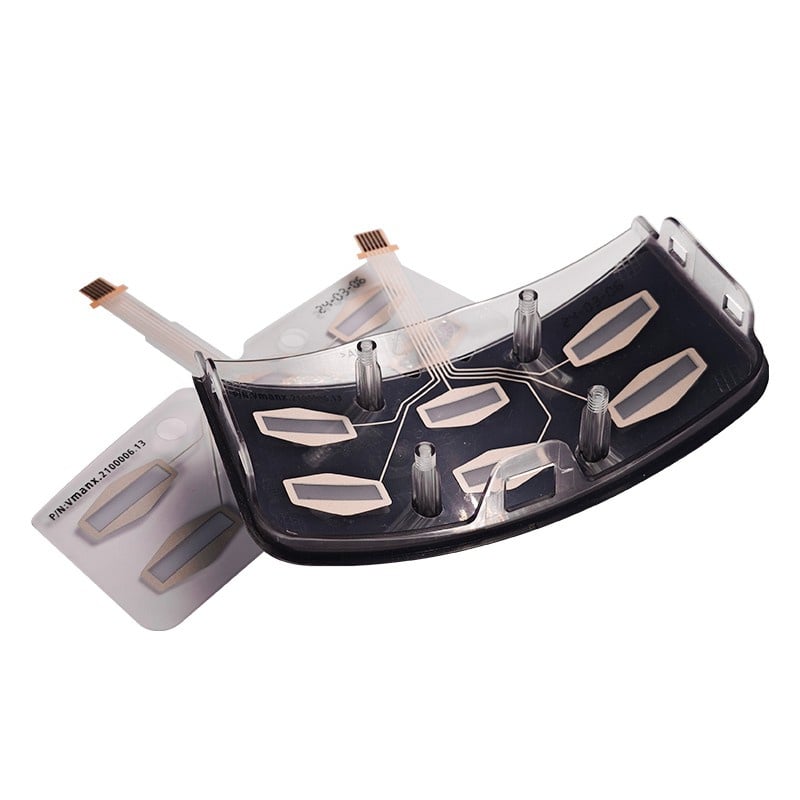

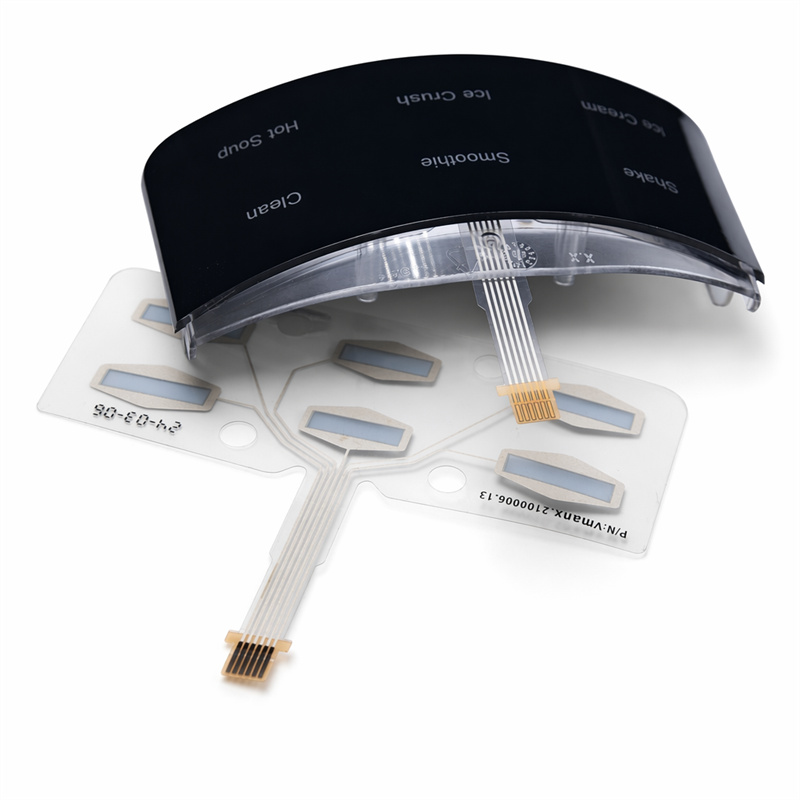

This is a complete front-end control module. The decorated panel, the sensing layer and the connector are engineered and assembled as one part, so your production line receives a single component that is ready to mount and plug in.

· IML In-Mold Decoration front surface - graphics and icons are molded behind the plastic, protected for the life of the appliance

· PET sensor film bonded to the reverse side - printed silver conductive traces, transparent PEDOT touch electrodes and an insulating varnish protective coating

· Single FPC connector tail - one flexible flat cable routes every touch key to your main board

· Curved or flat panel geometry - the PET film conforms to the molded shape of your appliance front

Key specifications:

Panels are produced under an ISO 9001 quality system, and materials comply with RoHS and REACH restricted-substance requirements - the baseline we hold for every exported appliance component.

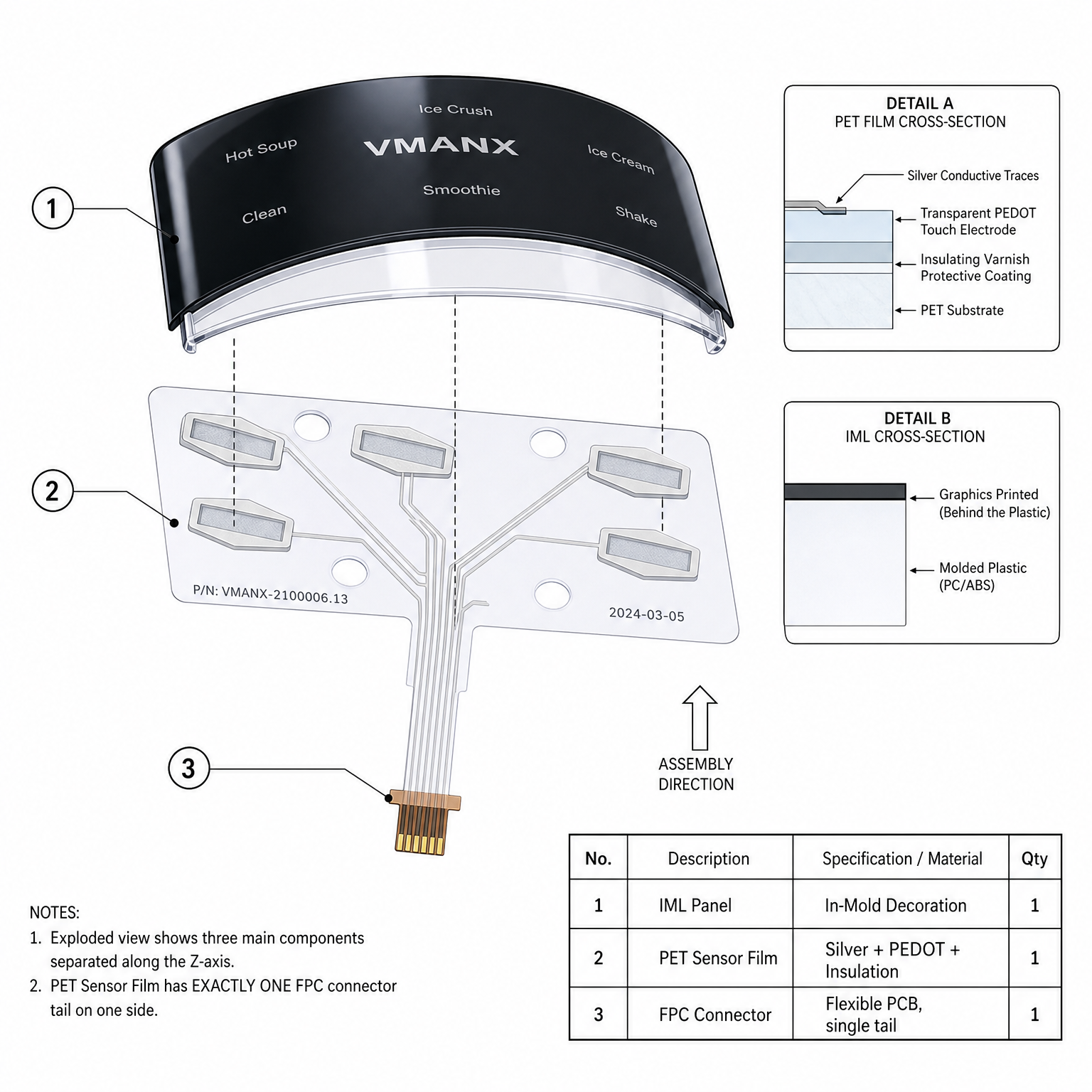

The Sensor Stack Explained

What makes this panel different is what happens on the back of the film. Three printed layers work together, each with a defined job:

· Printed silver conductive traces - fine silver circuits carry the signal from every key position to the single FPC tail with low resistance and stable conductivity, even across a curved panel.

· Transparent PEDOT touch electrodes - the touch zones themselves are formed from a transparent PEDOT conductive coating. Because PEDOT is optically clear, the electrode sits directly under the touch area without being visible through the decorated surface.

· Insulating varnish protective coating - a dielectric varnish seals the printed circuitry, guarding the silver and PEDOT layers against moisture ingress, oil migration and mechanical abrasion during assembly and service life.

The result is a sensing layer that stays electrically stable in a kitchen environment where humidity swings, hot vapour and cleaning chemicals are part of normal operation.

Engineered to Solve Real Kitchen Problems

Conventional printed overlays and mechanical keypads fail in predictable ways. This panel removes those failure points.

· Graphics wearing off with repeated wiping - solved by IML: the artwork is molded behind the plastic, so scrubbing never reaches the ink.

· Liquid and grease entering through button seams - solved by the seamless IML face: no cut-outs, no raised keys, nothing for residue to collect in.

· Touch response drifting in humid conditions - solved by the insulating varnish sealing the silver and PEDOT layers against moisture.

· Flat, generic-looking control panels - solved by the deep gloss and optical depth of IML decoration, which gives your appliance a premium, monolithic front surface.

This panel is designed for the automated and multi-function kitchen appliance segment, where a durable, premium control surface is a selling point:

· Automatic cooking robots - mode selection, temperature and timing control on a sealed surface that tolerates steam from the cooking bowl.

· Stand food processors - responsive touch keys that keep working with flour dust, oil splashes and frequent wipe-downs.

· Dough mixers and kneading machines - a curved panel that follows the housing contour, with keys that respond reliably during heavy-duty operation.

Because the layout, icon set and panel curvature are all customizable, one sensor platform can serve an entire appliance product line.

We work as an extension of your product team, from first concept through mass production:

· Custom design - key layout, icon artwork, text, color scheme and brand identity printed through the IML process

· Geometry matching - flat or curved panels engineered to your housing, with the PET film conforming to the molded surface

· Rapid prototyping - samples for fit, feel and functional validation before tooling is committed

· Production support - stable tooling, repeatable printing process and inspection under ISO 9001

· After-sales - responsive technical support and consistent supply for ongoing production

Q: What information do you need to quote?

A: Panel dimensions, curvature or 3D data, key and display layout, connector specification and target annual quantity. A sketch or a sample of your current panel is enough for us to start.

Q: Can the panel be curved?

A: Yes. The PET sensor film conforms to curved IML panels, which is how this product is built for appliance fronts that are not flat.

Q: Why PEDOT instead of a metal mesh electrode?

A: PEDOT is a transparent conductive polymer, so the touch electrode stays optically clear under the decorated surface while providing stable capacitive sensing.

Q: How are samples and lead time handled?

A: After design confirmation we produce samples for your validation. Production lead time depends on quantity and tooling status and is confirmed in your quotation.

Q: What compliance do you provide?

A: Manufacturing is under ISO 9001; materials meet RoHS and REACH requirements, and the panel is designed for appliances that comply with CE. Confirm your specific market standards with our engineering team.

Q: How do I get a quote?

A: Send your drawings or requirements via WWW.VMANX.COM and our team will reply with a technical proposal and quotation.
