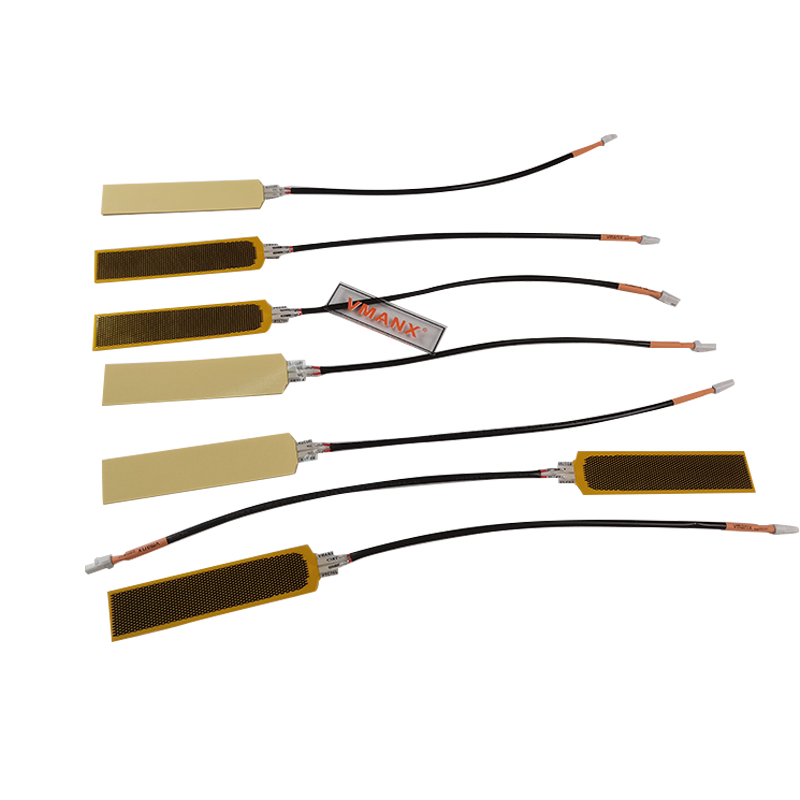

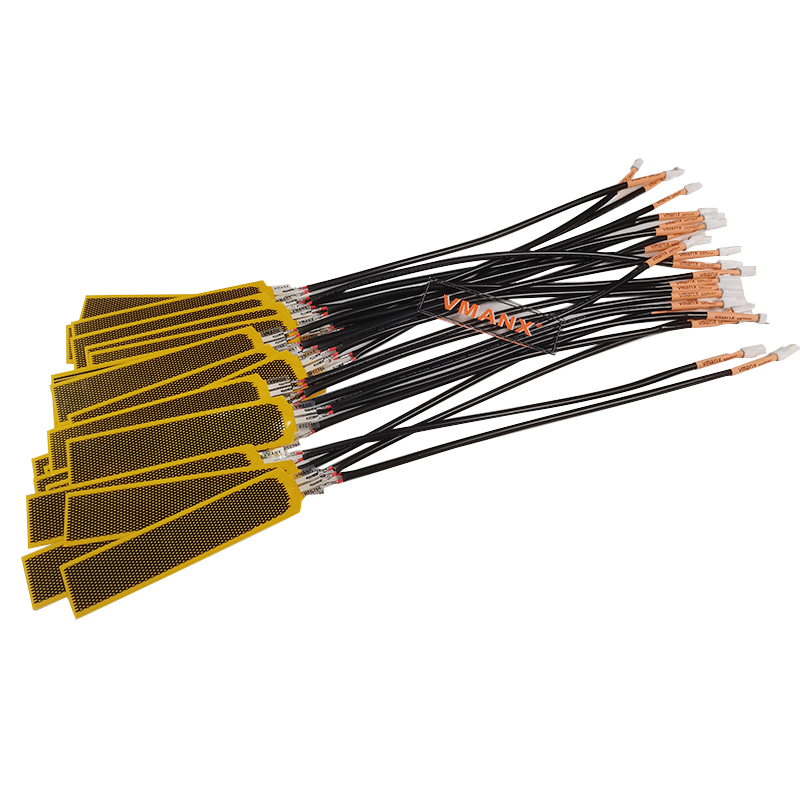

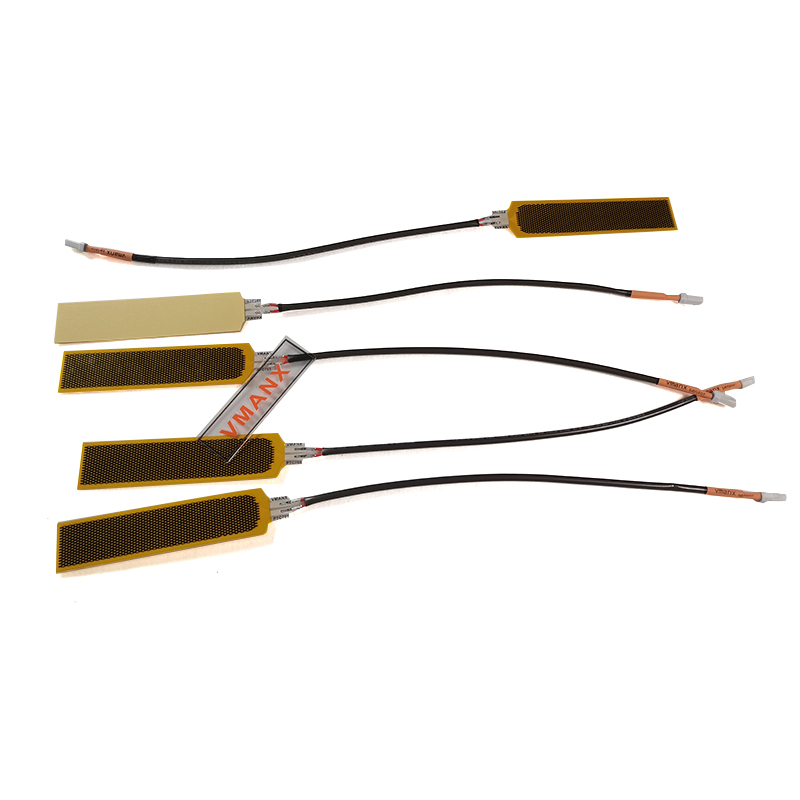

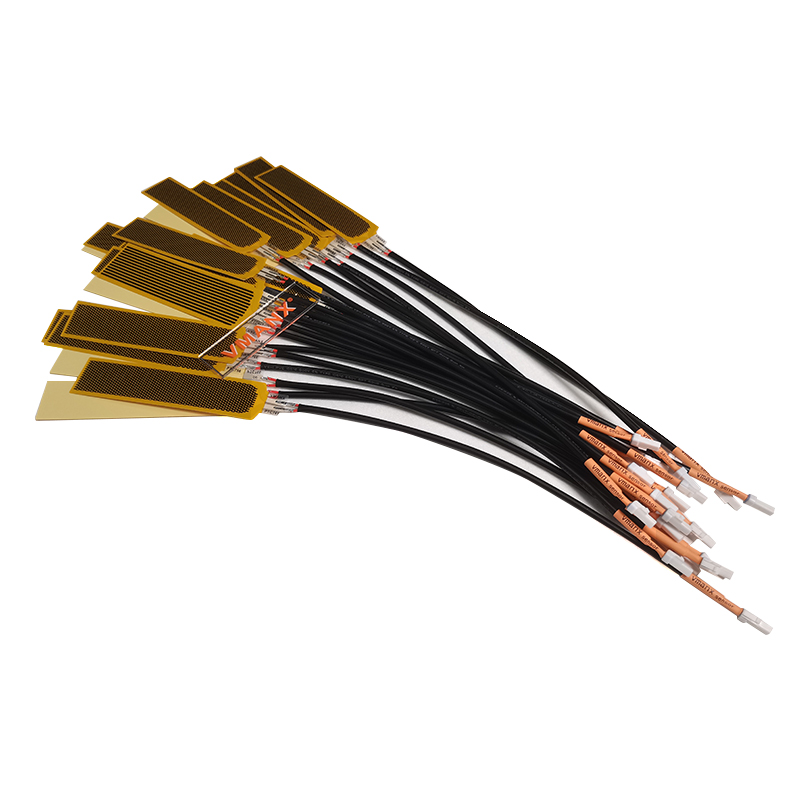

VMANX Automotive Power Battery Keep-warm Film

PTC (Positive Temperature Coefficient) technology provides fast, uniform, and flexible heating. It provides a sustainable lightweight solution for defogging and warmth retention.

Product Specification:
  • Type : PTC766
  • Voltage : 12-36V
  • Power Density : 300-500W/㎡
  • Max Srvice Temperature : 93.1℃
  • Product Thickness : 0.1-0.3mm
INQUIRY NOW
Product Details



PTC (Positive Temperature Coefficient) technology provides fast, uniform, and flexible heating. It provides a sustainable lightweight solution for defogging and warmth retention.

Product Parameters
No. Item Technical Indicators
1 Type PTC766
2 Voltage 12-36V
3 Size Customized
4 Power Density 300-500W/㎡
5 Max Srvice Temperature 93.1℃
6 Operating Ambient Temperature Range  -20-100°C
7 Product Thickness 0.1-0.3mm
8 Heater Graphene
9 Service Life ≥5 Years
10 Power Variation During Service Life <5%
11 Heating Method 70% Far-infrared heating, far-infrared emissivity 99.98%
12 External Insulation Material PET





Features: Automatic control and adjustment of heating, automatic generation of temperature control protection, PTC automatic temperature control.





Value  Details
Rapid heating Resistance remains low till just before self regulating kicks in, high power and thus heat generation.
Uniform/flexible
Heating
Wire/cables have hot/cold spots, by design optimization these can be eliminated for PTC heaters. Design can be easily adjusted to the shape of the surface which needs to be heated.
Self regulation Because of self regulation chances of overheating are significantly reduced. Safety is increased. No external temperature control necessary.
Light weight Substrate is light, thin layers are printed. Limited space/weight needed to implement material.
Sustainability Environmentally very stable, long life time. Low power consumption, no external controls needed. Printing process is additive process, less waste compared to etch process.

Usage scenarios: Automotive thermal power batteries (new energy power insulation), automotive seat heating pads, automotive steering wheel heating, automotive rearview mirror defogging heating pads, automotive door armrest heating, camera monitoring, pet pads, and other heating application scenarios.
