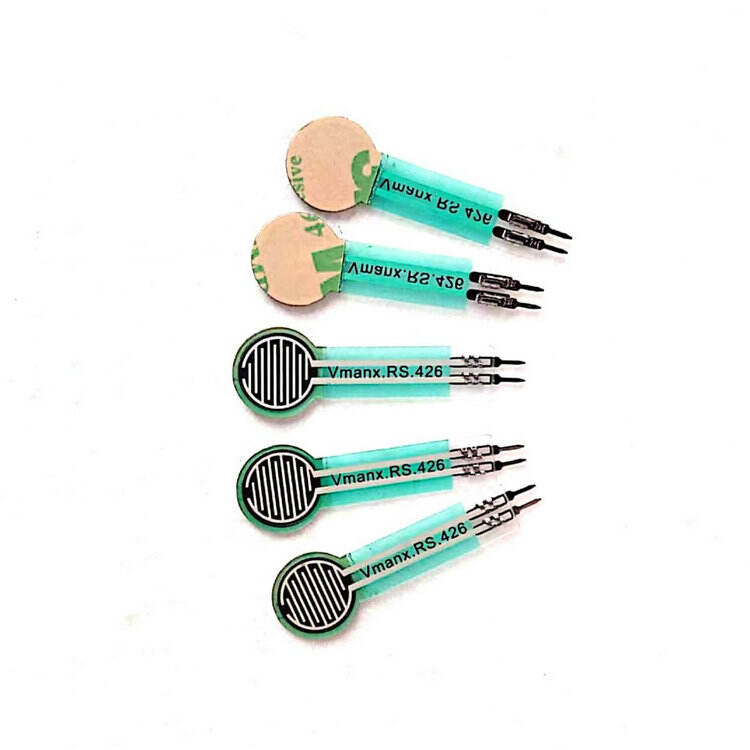

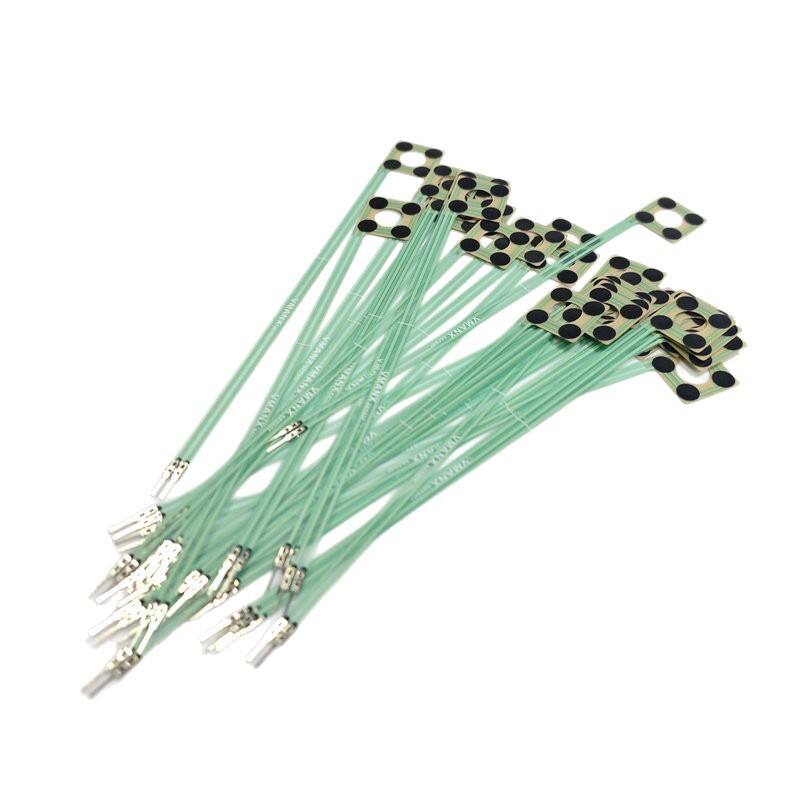

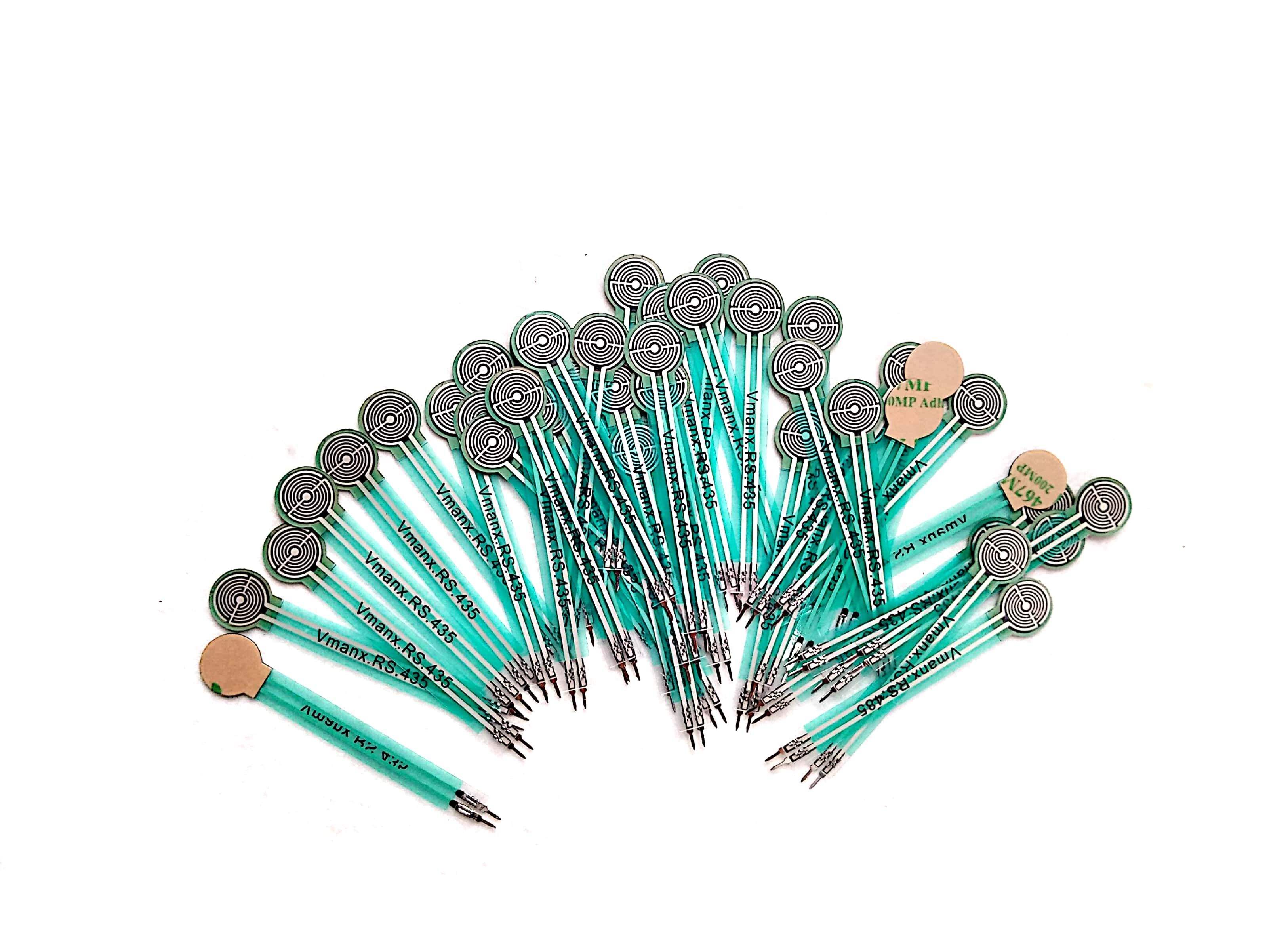

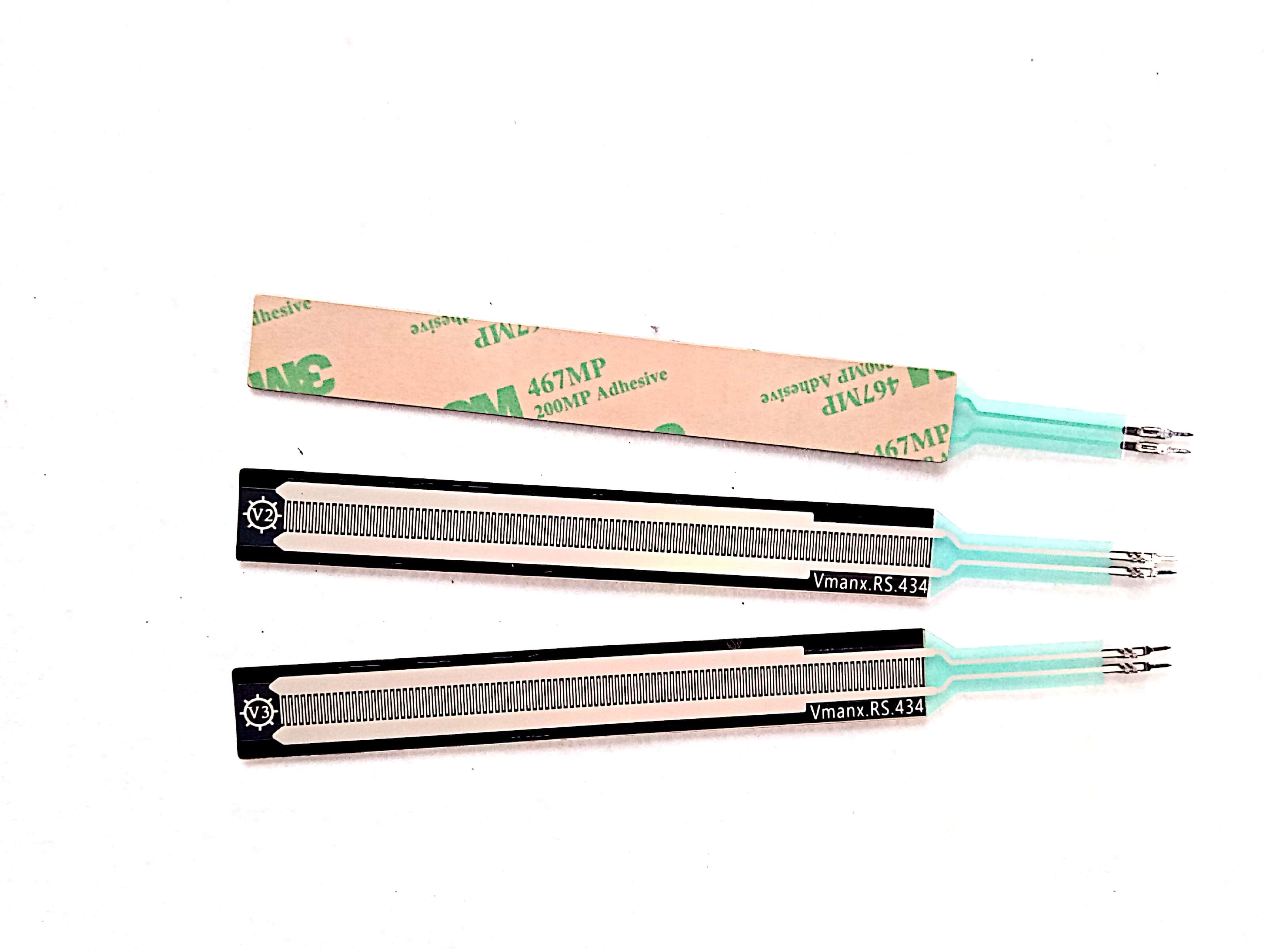

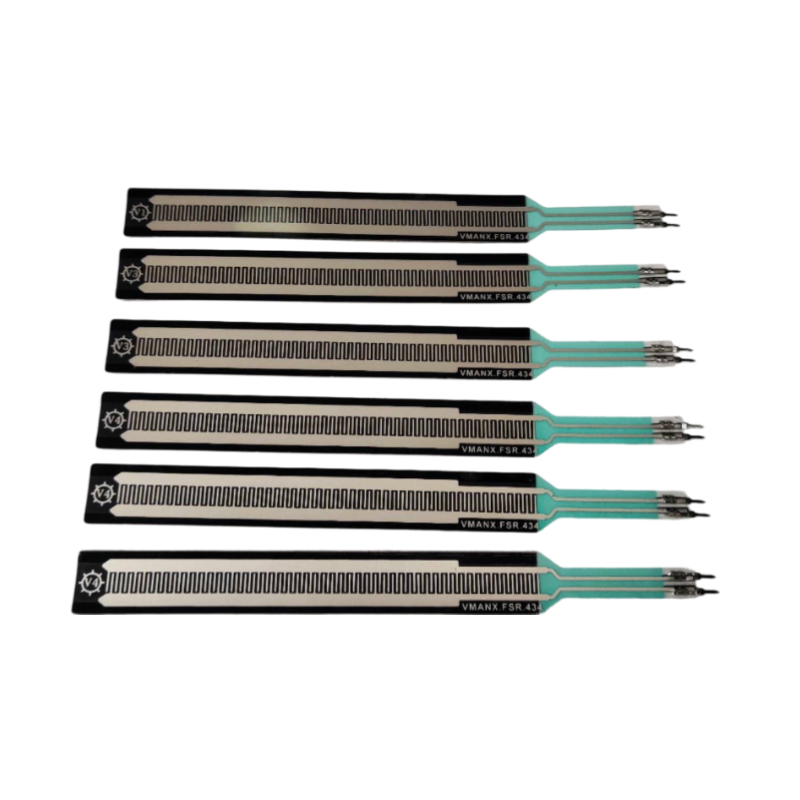

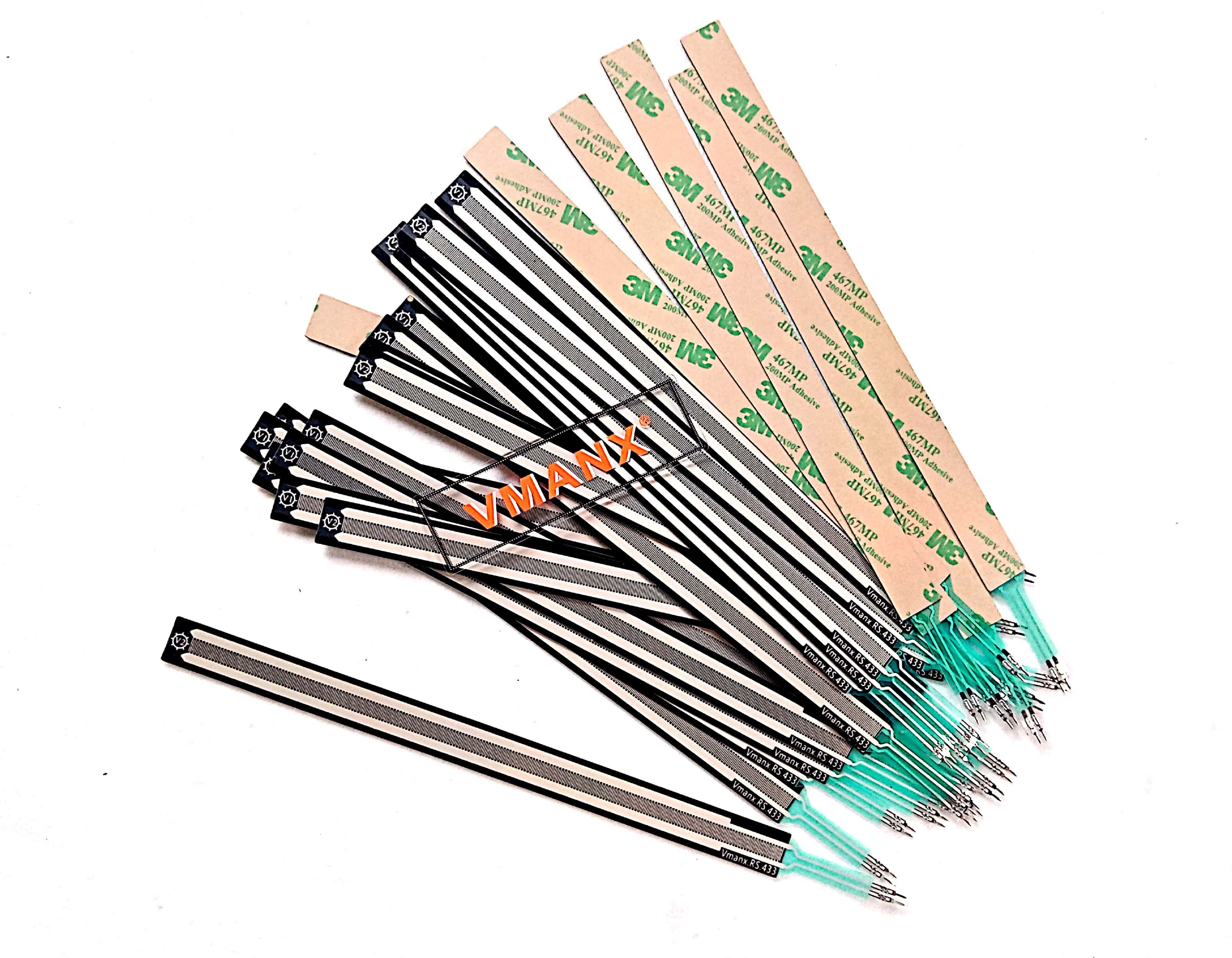

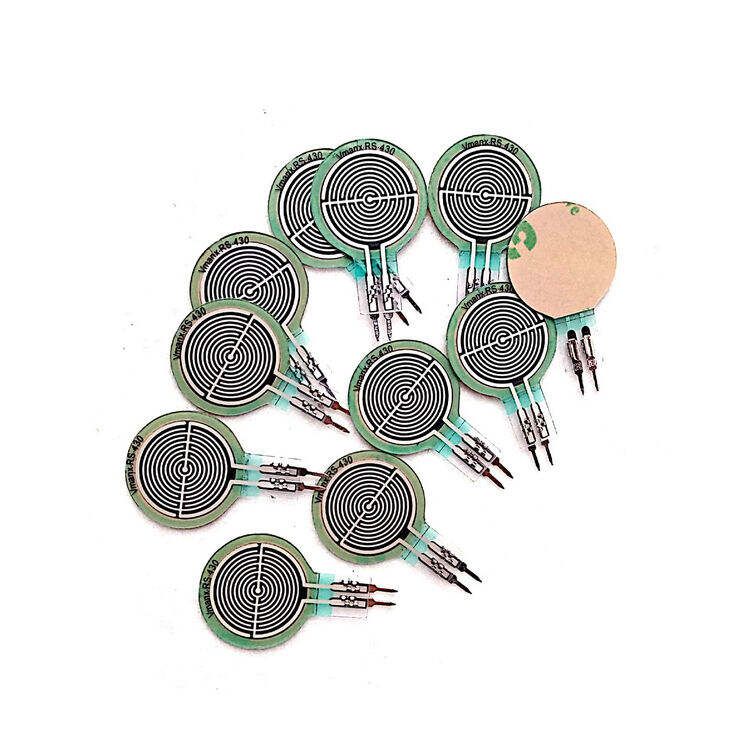

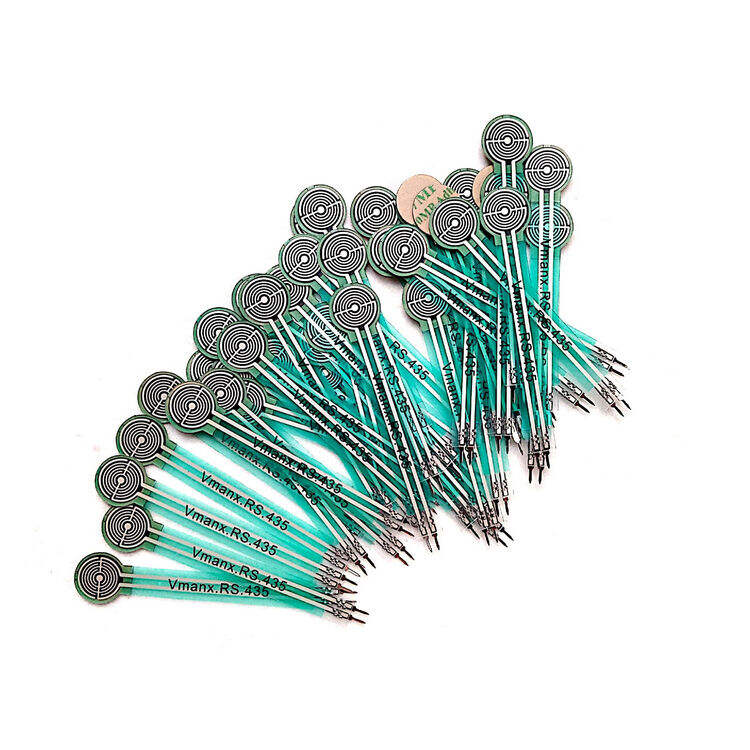

The FSR (Force-Sensing Resistor) thin-film pressuresensor utilizes advanced flexible printed electronicstechnology, designed for high-precision, high-reliabilitydynamic force detection applications.
This product combines ultra-thin structure, fast responseand long life characteristics.
Suitable for medical equipment, industrial automation,consumer electronics, robotics, and other fields.
Demonstrates Vmanx's core technology and processcapabilities in the field of flexible sensor manufacturing.
Electrical Specifications
| Parameter | Specification |
| Operating Voltage | 1.0V-5.0V DC |
| Standby Current | <1 A (No-load condition) |
| Resistance Range | 10 kΩ-1 MQ (Pressure-dependent) |
| Force Range | 0.1N-20N |
| Linearity Error | ±5% (Full-scale range) |
| Output Signal | Analog Voltage/Digital(R2C/SPI) |
1 Precision Metrics
Repeatability: +2% (multiple pressurizations at the same point)
Hysteresis: +1.5% (difference between loading and unloading paths)
Temperature Drift:+0.1%/°C(from-20°C to +70°C)
2 Sensitivity
Threshold Sensitivity : Detects as low as 0.1N
Resolution: 0.05N (High-precision mode)
Response Time:<5ms (90% signal stabilization)
3 Durability & Lifespan
Mechanical Life:>10 million cycles (20N load)
Bending Life:>1 million cycles (Bend radius >5mm)
Environmental Resistance : IP67-rated (Dustproof & waterproof)
Temperature range: - 30°C to +85°C (operating); -40°C to +100°C (storage)
Humidity tolerance: 10% - 90% RH (non-condensing)
Shock Resistance : 50G acceleration, 11ms pulse (compliant with IEC 60068-2-27)
Chemical Stability : Resistant to alcohol, weak acid/alkali wiping (compliant with medical-grade standards)
1 Medical & Healthcare
Prosthetic pressure feedback
Rehabilitation equipment tactile monitoring
Wearable health monitoring devices
2 Industrial Automation
Robotic gripper force control
Assembly line pressure detection
Precision electronic component testing
3 Consumer Electronics
Smart home touch panels
Gaming controller force feedback
Fitness equipment pressure distribution analysis
4 Automotive & Robotics
Seat occupancy detection
Autonomous driving tactile interaction
Collaborative robot safety protection
1 Precision Manufacturing Process
Flexible substrate material
Nanoscale printing accuracy : Fully automated screen printing, <5um tolerance.
Multi-layer stack design
2 Quality Control System
100% Automated Optical Inspection (AOI)
ISO 9001 & IATF 16949 certified
EU RoHS, REACH, CE compliant
