VMANX IME In-mould electronics technology integration(In-Mold Electronics).

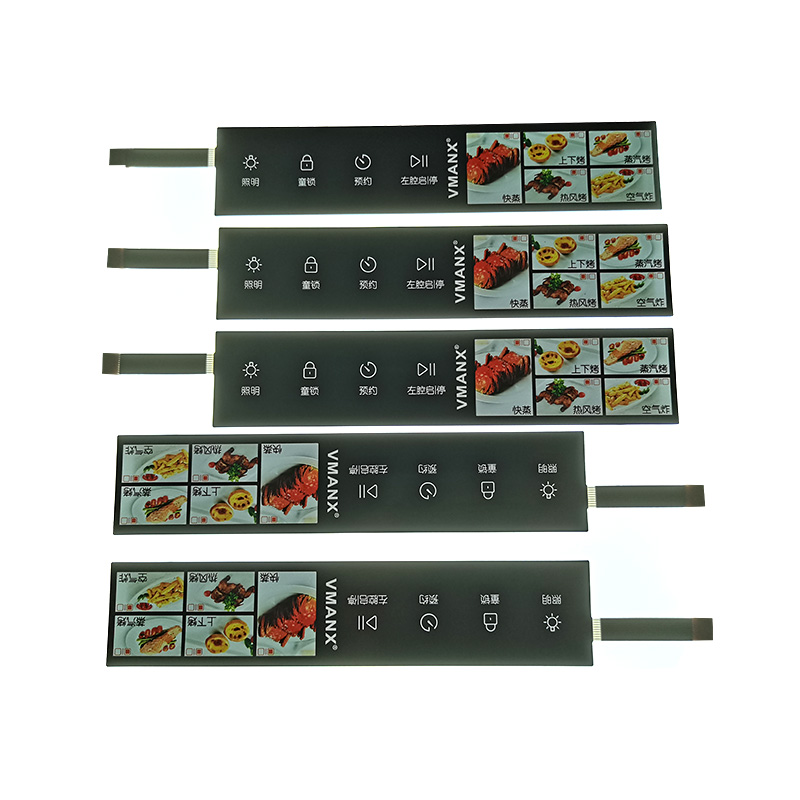

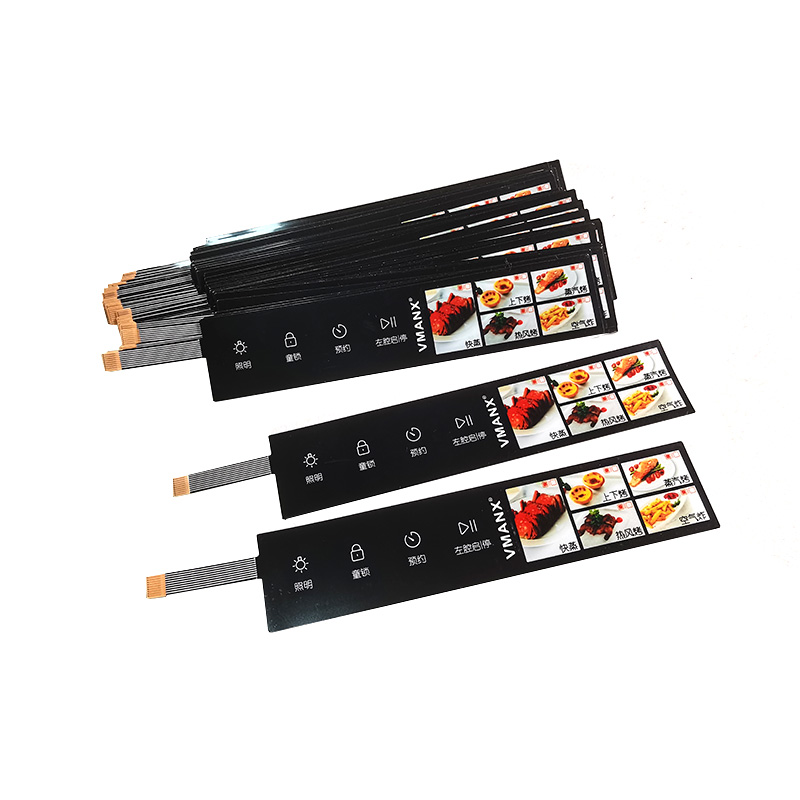

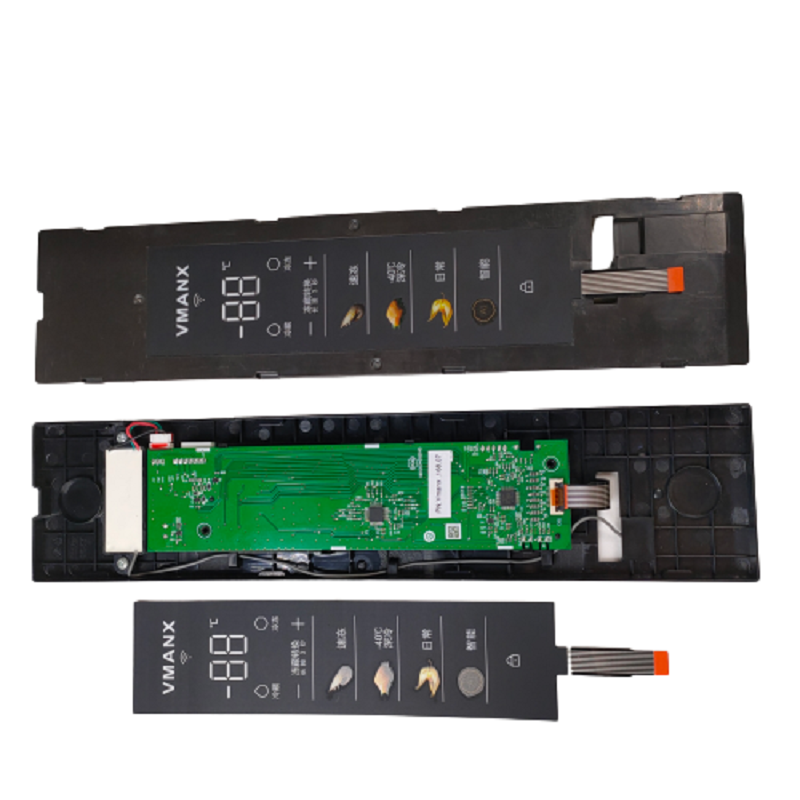

IMD With capacitive touch sensing, printed on PET filmIn-mould injection moulding and PEDOT transparent electrodeintegration,Achieve ultra-thin integrated decorative touch panels.
Suitable for high-end applications such as home appliances,automotive control centres, industrial control and medicalequipment.

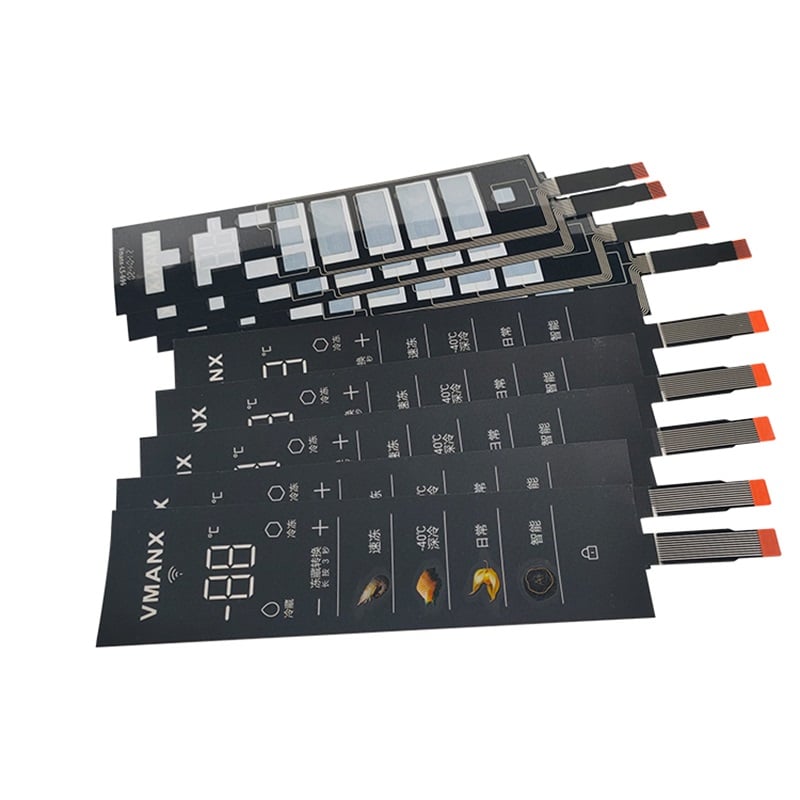

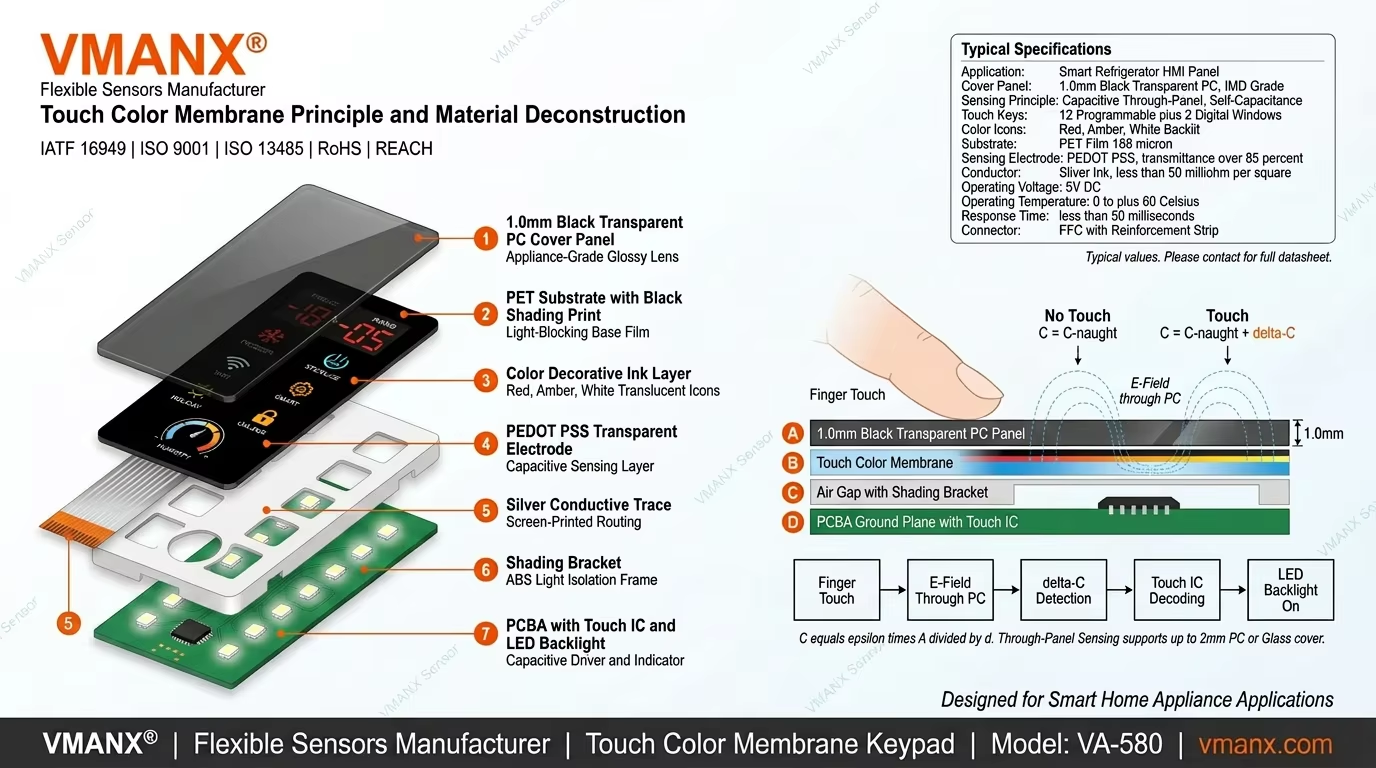

| Tiers | Materials/Process | Features |
| Surface layer | Customized PET film | Scratch resistant (≥3H hardness), UV cured coating anti-aging |
| Graphics Layer | High precision screen printing | Symbol/window light-transmitting design, supporting Pantonecolor gamut |
| Circuit Layer | PEDOT transparent conductive ink | Capacitive touch sensing, square resistance ≤ 500Ω/□ |
| Adhesive layer | Optical-grade OCA double-sidedadhesive tape | Light transmittance> 92%, bubble-free adhesion |
| Base layer | Engineering plastics (PC/ABS/PMMA) | Secondary injection moulding, thickness adjustable from 0.8 to 2.0 mm |
1 Excellent weather resistance
Passed ISO 4892-2 UV ageing test (1000 hours AE < 1.5)
Operating temperature : -30°C to +85°C (suitable for automotive use)
Chemical corrosion resistance : Resistant to everyday solvents such as alcohol and cleaning agents.

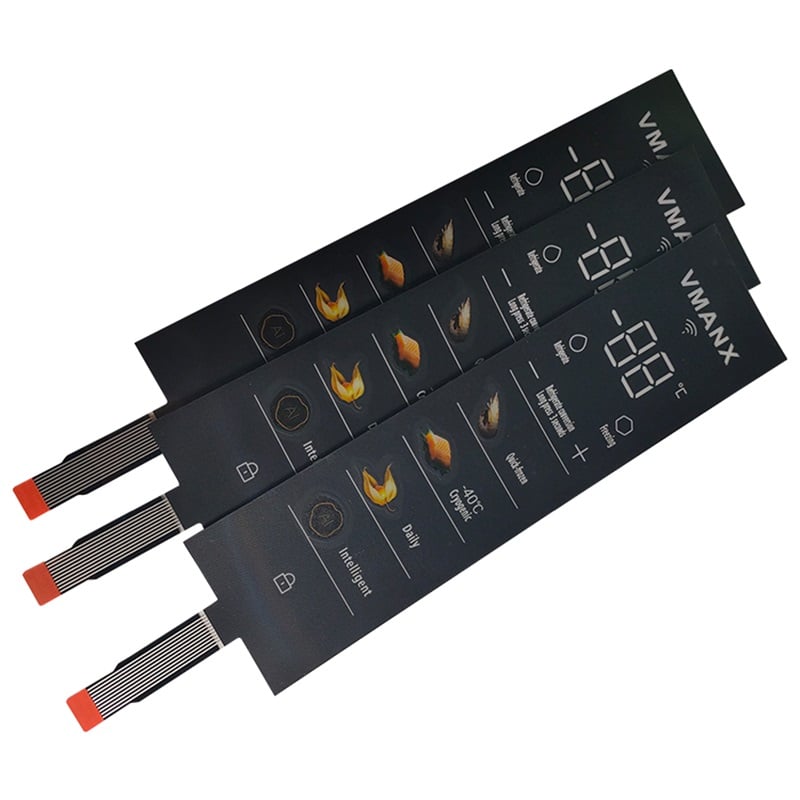

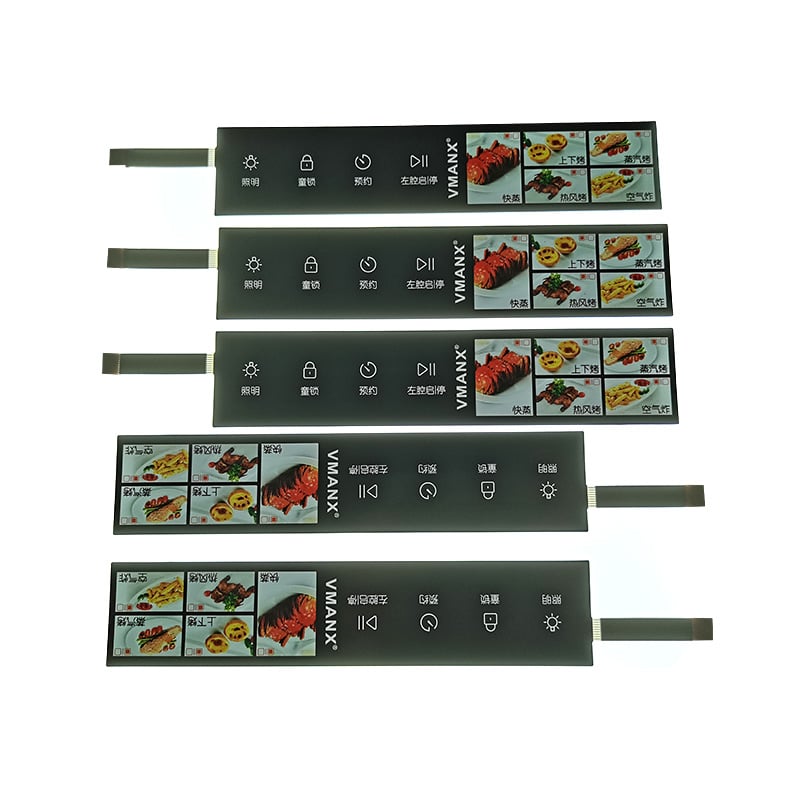

2 Aesthetics and Flexible Design
Curved surface support: minimum bending radius R=15mm
Transparent display area : Transmittance > 88% (wavelength 450-650 nm)
Customisation flexibility: Supports 3D shaping, irregular cutting, and hidden LED light guides.
3 Touch performance
Induction type : Selectable self-capacitance/mutual capacitance
Sensitivity : Finger detection distance s5mm
Response time : <15ms
EMC compatible : conform to EN 55032 Class B
4 Extremely long service life
Touch life : > 500,000 Secondary cycle (IEC 61000-4-2)
Environmental durability : IP54 Protection level (Optional IP67/IP68)
| Parameter | Standard value | Test conditions |
| Operating voltage | 3.3V/5VDC±10% | |
| Quiescent Current | <10μA | Standby mode |
| Touch signal-to-noise ratio (SNR) | >50:1 | EMC Interference environment |
| Dielectric strength | >15kV/mm | IEC 60243-1 |
| Test Items | Standard Value | Result |
| High temperature and highhumidity storage | 85℃/85%RH 1000h | No delamination, normal function |
| Hot and cold shock (-40℃→85℃ | 500 cycles | ΔR<5% |
| Mechanical vibration | 10-500Hz 3Axis | No structural damage |
| Salt spray test | ASTM B117 96h | No corrosion |
Rapid Prototyping : 3 weeks to deliver functional samples.
Document Package : Provide DFM reports, 3D STEP files, ECAD interface definitions.
Certification Assistance : CE/FCC/REACH/RoHS full support.

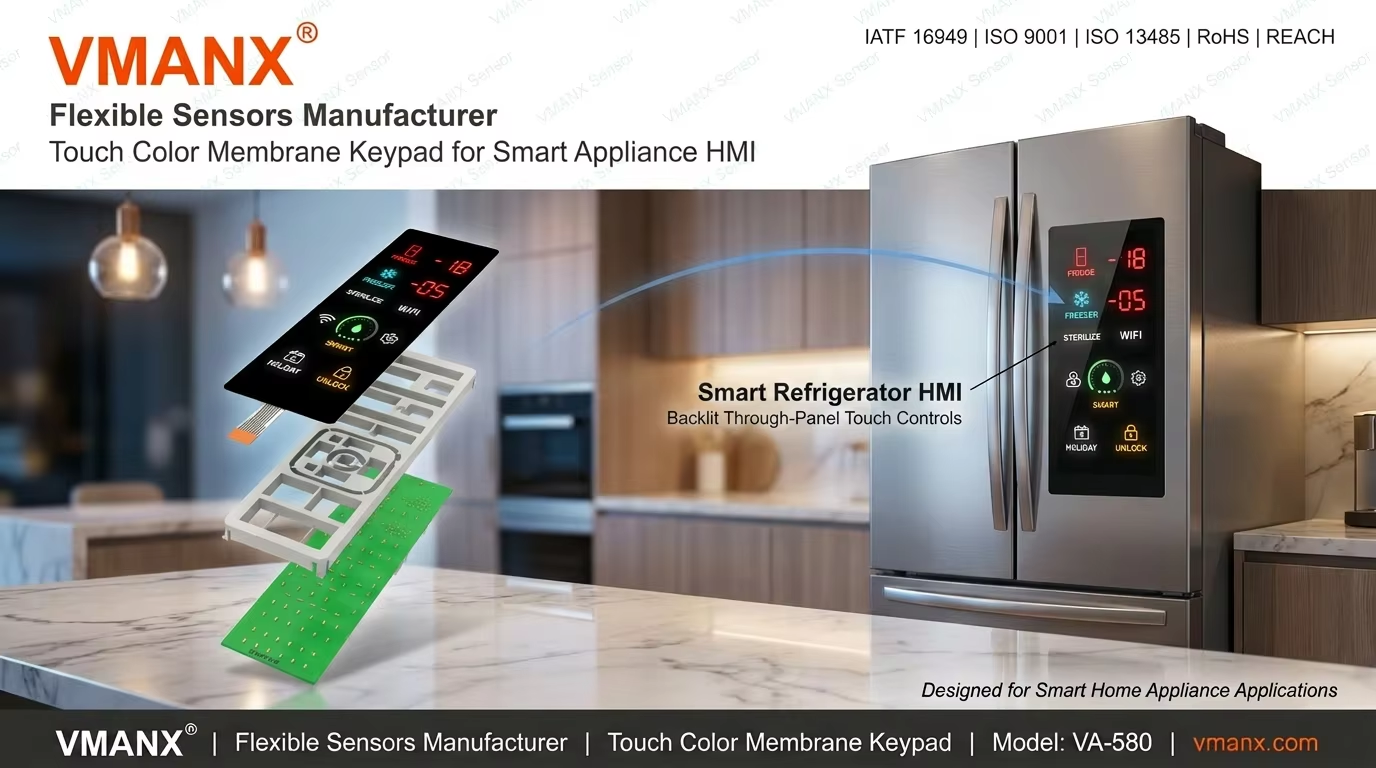

Car center console | Medical device UI| Smart Home Appliance Control | Industrial dashboard

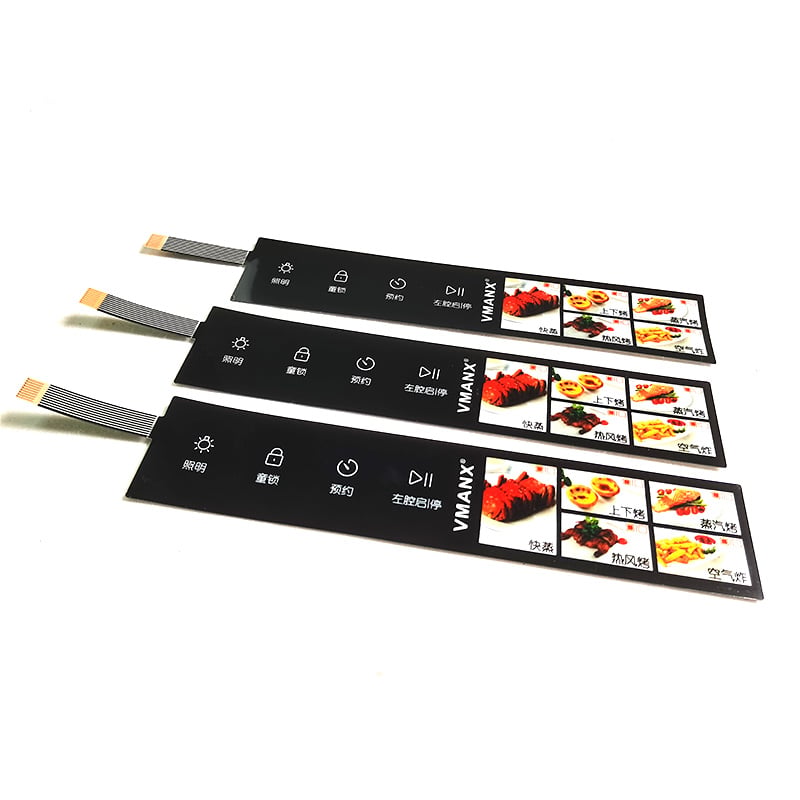

Typical Cases: Curved air conditioner touch panel, In-vehicle HMI integrated system,Waterproof interface of medical devices, Commercial appliances.
VMANX IME Passed IATF16949 quality system certification, Provide 5-year product performance guarantee,Support global logistics delivery.
