VMANX is a high-tech enterprise specializing in the designandmanufacturing of membrane sensors,printed electronics,and membrane switches. With 19 years of industry expertise,we provide global medical device and clinical communicationplatforms with highly reliable,high-cleanliness, and user-friendlyhuman-machine interface (HMI) solutions.
Our core products are widely used in nurse call systems,handheld call devices, medical control panels, and otherapplications. We are ISO 13485 certified, ensuring ourproducts comply with the stringent standards required formedical equipment.

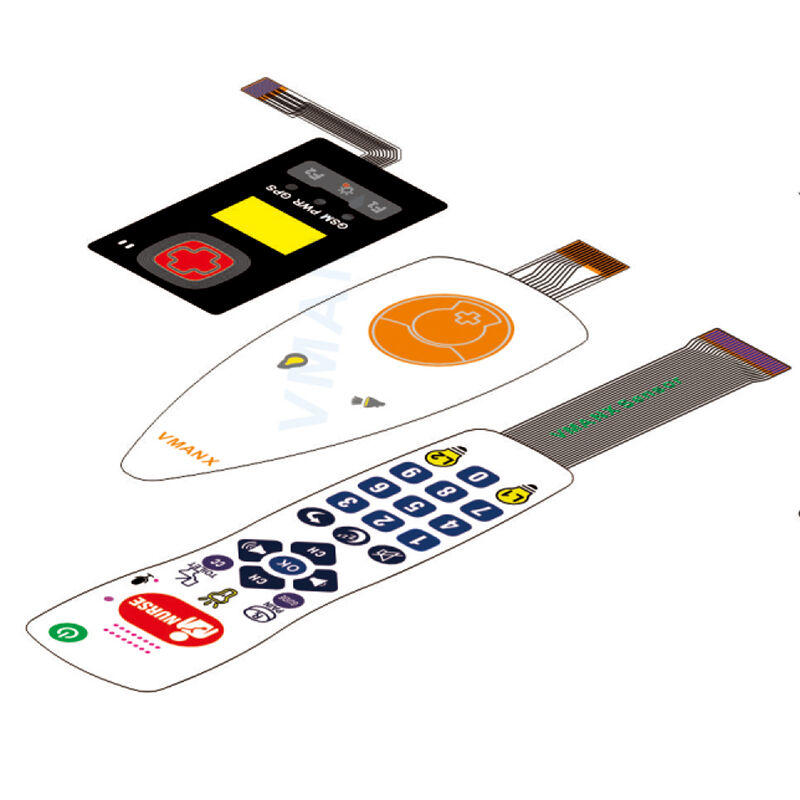

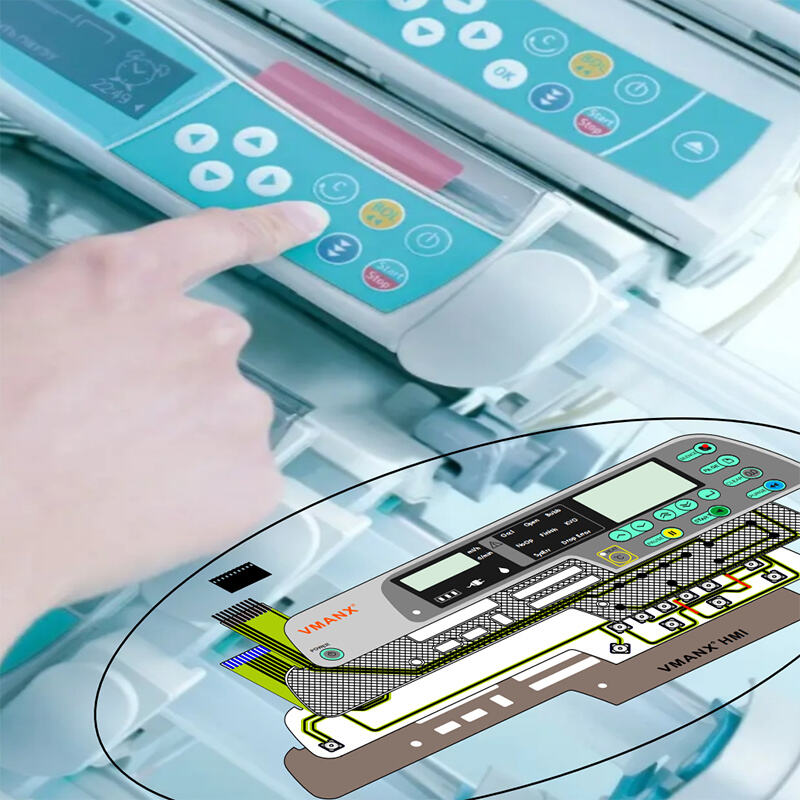

This specification describes a dedicated membrane switch/control panel for nurse call systems. It utilizes antimicrobialsurface materials and precision circuit technology, designed specifically for high-frequency-use medical environmentsrequiring easy cleaning and disinfection. It offers stable, long-lasting tactile feedback and visual guidance.
1 Materials & Construction
Front Layer
Antimicrobial polyester film (with antibacterial coating, resistant to common disinfectants such as alcohol andisopropyl alcohol).
Or Medical-grade silicone (waterproof, slip-resistant, easy to clean, customizable soft-touch feel).
Circuit Layer
Flexible Printed Circuit (FPC) with high-precision silver or copper foil traces.
Optional Light Guide Film (LGF) backlighting for uniform, low-power illumination, supporting multi-color LEDindicators.
Key Mechanism
Metal dome (tactile, crisp feel, lifespan of 200k to 1 million cycles, customizable per client requirements).
Silicone rubber keypad (quiet operation, soft tactile feel, can integrate backlighting).
Adhesive Layer
Medical-grade pressure-sensitive adhesive ensures long-term bonding without residue.
2 Electrical Characteristics
Operating Voltage: s 12V DC
Contact Resistance: s 1000
Insulation Resistance: > 100MO
Travel: 0.1mm ~ 0.5mm (adjustable)
Lifecycle: Mechanical key life 200k to 1 million cycles (customizable per client); Circuit layer 5 million cycles.
3 Environmental & Durability
Operating Temperature: -20°C to +70°C
Ingress Protection Rating: IP54 (dust and splash resistant; silicone front panel can achieve IP67).
Chemical Resistance: Resistant to medical disinfectants and cleaners.
Abrasion Resistance: Surface hard-coating provides scratch resistance.
4 Customization Capabilities
Graphics & Legends: High-resolution screen printing, digital printing, transparent windows, localized texturing
Backlighting Solutions: Single/Multi-color LEDs, independently controlled zones, adjustable brightness.
Interface Types: Pin connectors, ZIF connectors, solder pads, etc.
