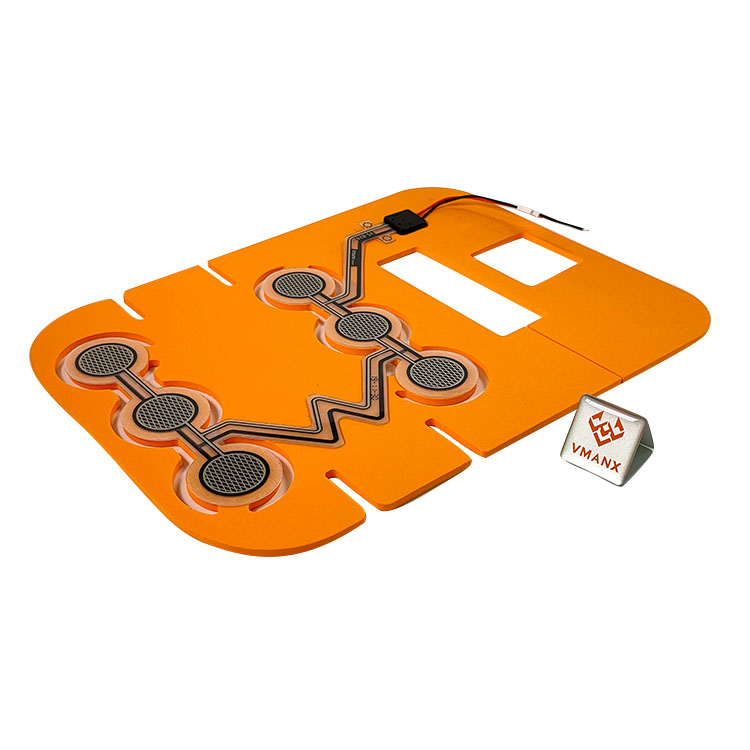

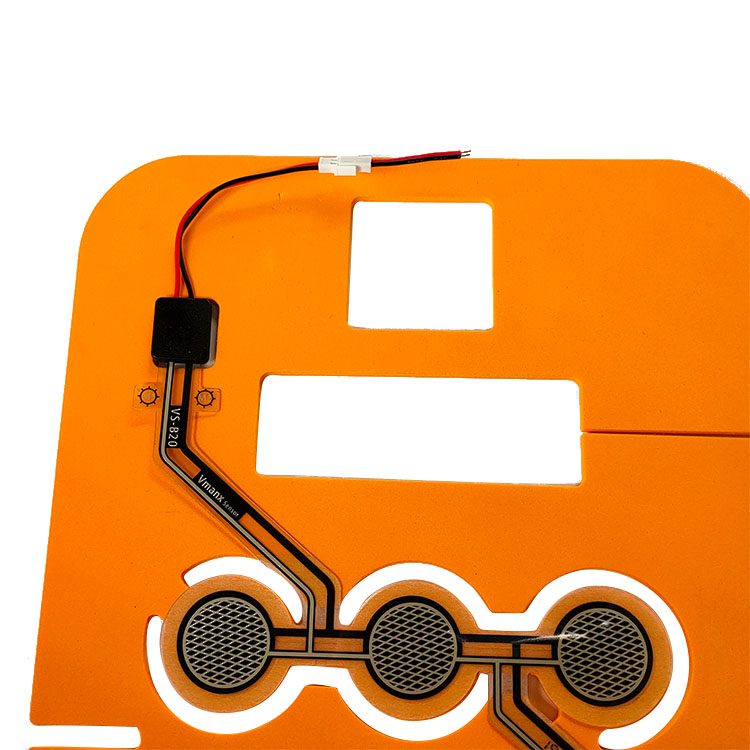

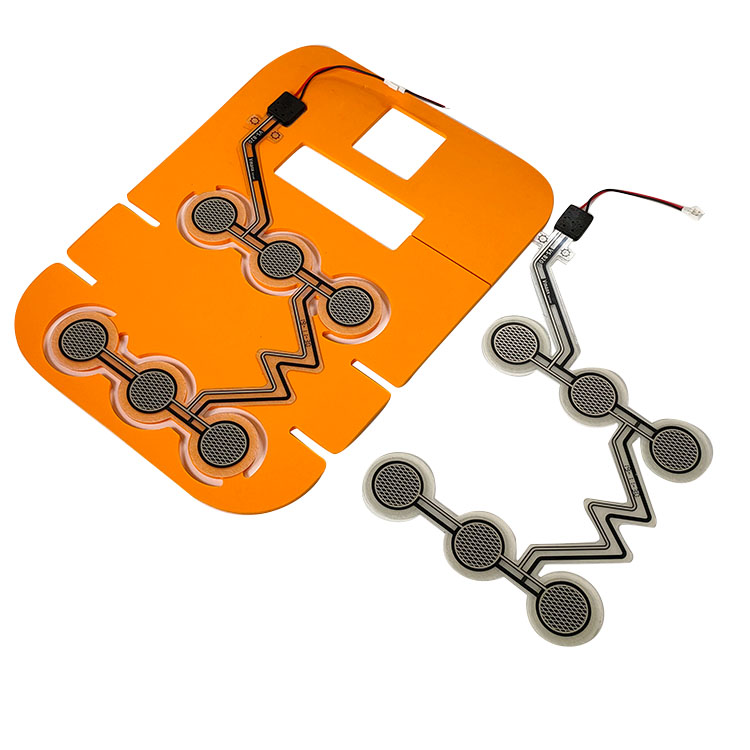

Car Seat Occupancy Sensor

Occupant Sensing System Of Child Seat Pressure Sensor

Child safety seat occupancy (used in private cars to prevent safety risks caused by children being left in the car

Product Specification:
  • Operating Voltage : Min 0/Max 5.5V
  • Working Current : Min 0/Max 50mA
  • Peak Current : Min 0/Max 100mA
  • Non Triggering Resistance(non load) : Min 10.0K/Max ∞Ω
  • Output Signal : Resistance<100Ω
INQUIRY NOW
Product Details



Infant model Suitable for infants aged 9 months to 3 years 9kg-18kg (about 9 months to 4 years old)
Child model Suitable for 4 ~ 6 years old baby 15kg-25kg (about 3-6 years old)
Juvenile model Suitable for 7-12 years old baby 22kg-36kg (about 6-12 years old)



Child Safety Sensor

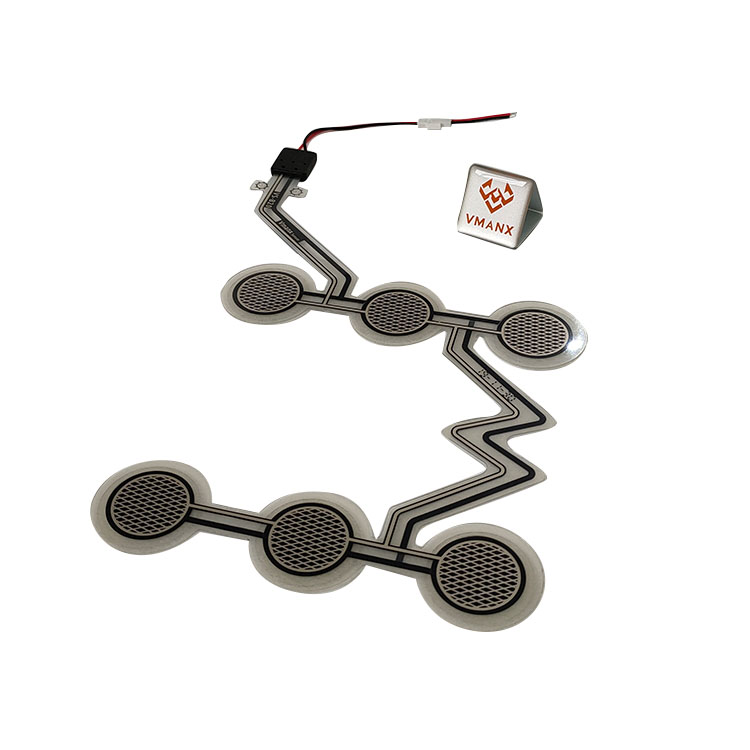

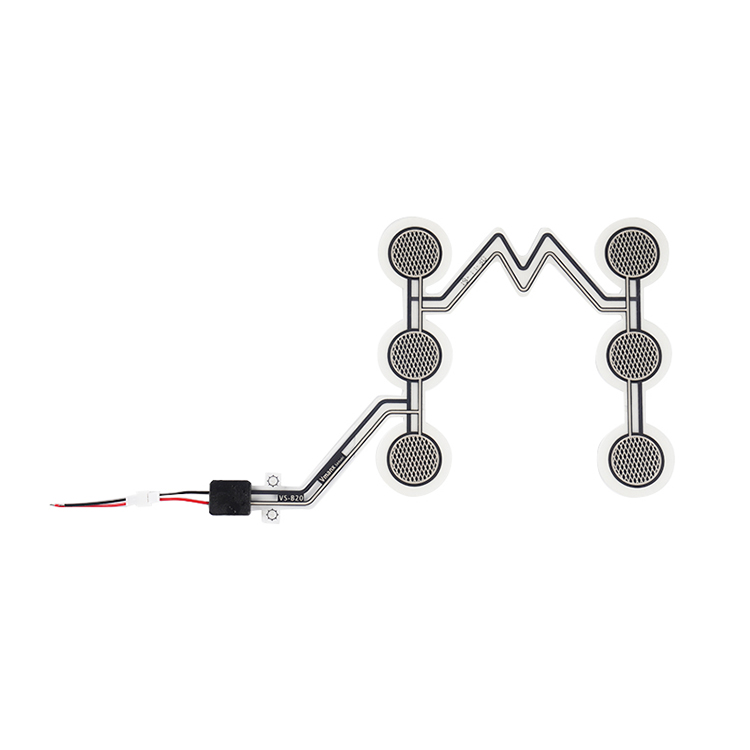

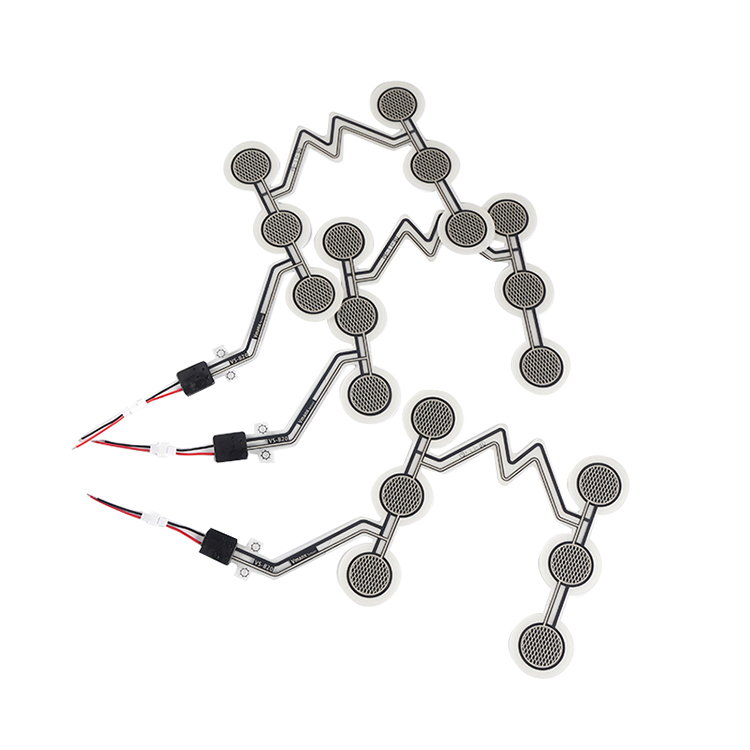

Vmanx child safety seat sensor is a membrane contact sensor.Sensor contacts are evenly distributed on the force receiving surface of the seat, and trigger signals are generated when external forces an external force acts on the seat. It can be applied to the child safety seat occupant perception system to prevent children from being forgotten in the car, avoid unexpected accidents etc. For example, with this device, the pressure sensor can detect whether the child is riding on it, and the signal of the sensor is detected by CU. Then, CU control can send signals to mobile phones or automotive related terminals as a reminder to prevent unexpected discoveries. It can also design the size of the sensor and the sensitivity of the contacts according to the shape and hardness of the seat.

Features of Vmanx child safety sensor
Membrane type
Pressure trigger
Can detect whether someone is sitting and output the signal to a mobile phone APP or a terminal related to the car
Sensors can be developed according to the type of child seat design

Property Parameter

Working voltage: Min 0/Max 5.5V

Working current: Min 0/Max 50mA

Peak Current: Min 0/Max 100mA

Non-trigger resistance (Non-loaded): Min10.0K/max ∞Ω

Trigger resistance (Carrying the body): Min 0/Max 100Ω

Insulation resistance (Non-loaded): Min10/ Max 20MΩ



Technical parameters
Material: PET
Material surface thickness: 0.125mm ~0.188mm
Output signal: Resistance (<100Ω)
Film thickness: 0.4~0.65mm
Back adhesive: Pressure-sensitive adhesive
Environment temperature: -40℃-80℃
Permanence: >200000 times
Particular Test Weight (20mm diameter):
Pressure range Single-point test <25g 100% Non-conducting
Pressure range Single-spot test: >125g, 100% conducting
Connector: As per actual requirements



Applications
Child safety seat occupant perception system
Children's playground safety seat
Child related seat
