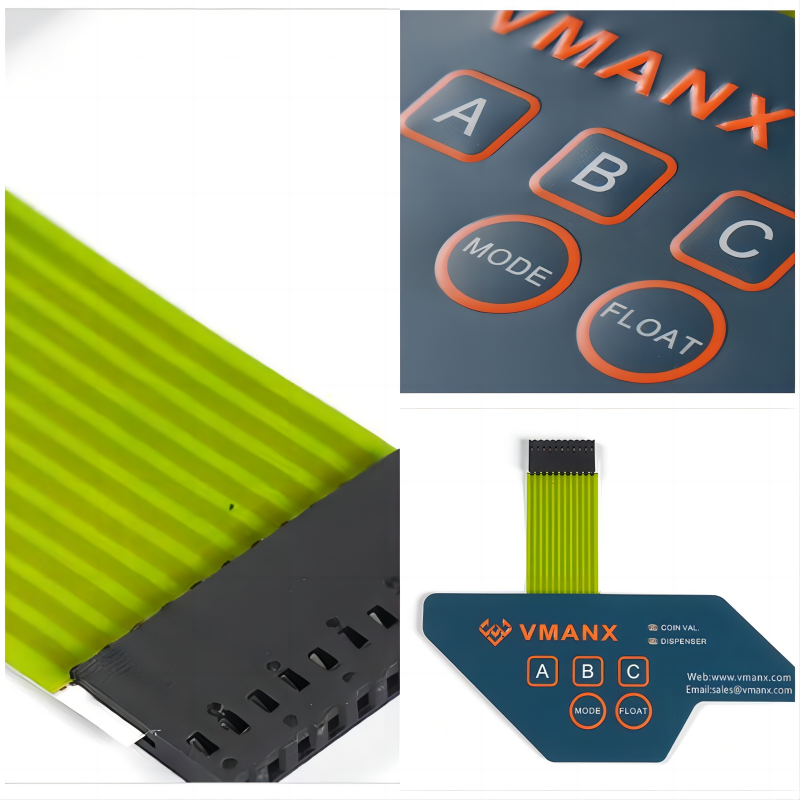

Light Guide Film (LGF) Membrane Switch

A VMANX Light Guide Film (LGF) is a technology used in the design and construction of membrane switches and other user interface devices. A membrane switch is a low-profile, flexible electronic switch that is commonly used in various applications like con

Product Specification:
  • :
INQUIRY NOW
Product Details

A VMANX Light Guide Film (LGF) is a technology used in the design and construction of membrane switches and other user interface devices. A membrane switch is a low-profile, flexible electronic switch that is commonly used in various applications like consumer electronics, medical devices, industrial controls, and automotive controls.

The main components of a membrane switch include a flexible membrane (usually made of polyester or polyimide) with printed conductive traces and a top graphic overlay. The graphic overlay is typically made of a durable and visually appealing material, often polyester or polycarbonate, with printed icons, labels, and symbols.



The LGF, also known as a light guide layer, is a critical part of some membrane switches that require backlighting for enhanced user visibility. Its primary purpose is to distribute and guide light evenly across the graphic overlay, ensuring that the icons and symbols are uniformly illuminated.



How VMANX Light Guide Films (LGFs) work:



Light source: A light source, usually an LED (Light Emitting Diode), is placed at one or more edges of the LGF. The LED emits light into the LGF.



Light diffusion: The LGF is designed with a pattern of microstructures on its surface. These microstructures, often in the form of dots or lines, help scatter and diffuse the light throughout the LGF.



Total Internal Reflection (TIR): The LGF is made of a material with a higher refractive index than its surroundings. This difference in refractive index allows for Total Internal Reflection (TIR) to occur when light encounters the LGF's surface at a specific angle. TIR confines the light within the LGF, preventing it from escaping through the sides or back of the film.



Light distribution: As the light propagates within the LGF through multiple reflections, it is distributed uniformly across the graphic overlay. The graphic overlay's icons and symbols act as light transmitters, allowing the light to pass through while remaining visible to the user.



User visibility: The uniform distribution of light allows the user to see the icons and symbols clearly, even in low-light or dark environments.



The VMANX Light Guide Film technology offers several advantages, such as improved aesthetics, reduced power consumption (due to efficient light distribution), and the ability to create custom backlighting designs for the membrane switch.



It's worth noting that while LGFs are a common solution for backlighting in membrane switches, other backlighting methods, such as EL (Electroluminescent) panels or LED arrays, can also be used depending on the specific requirements and design considerations of the application.
