Touch Module

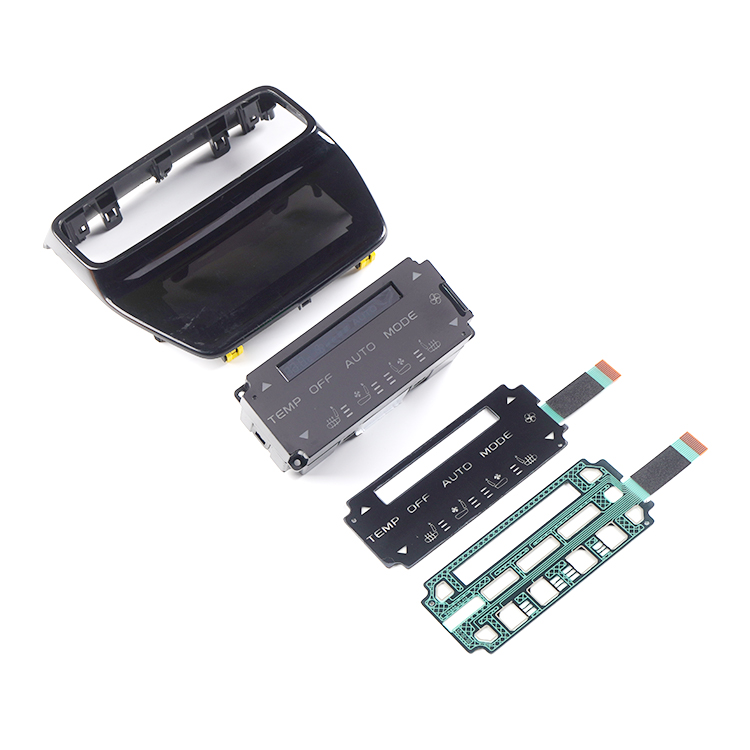

Automotive Car Central Control Touch Module

Application Program: Car(control) Central Stack,Door Control,Seat Control

Product Specification:
  • Working voltage : ≤ 5.5VDC
  • Insulation resistance : ≥ 100MΩ
  • Circuit resistance : ≤100Ω
  • Working temperature : -40 ℃ -+80 ℃
  • Storage temperature : -45C+85C
  • Working humidity : 45% -85%
Product Details

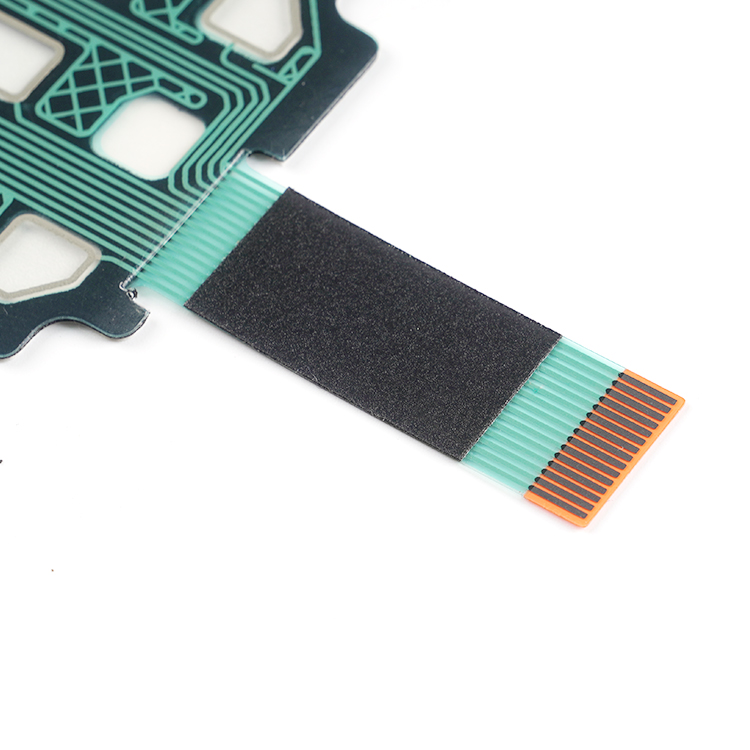

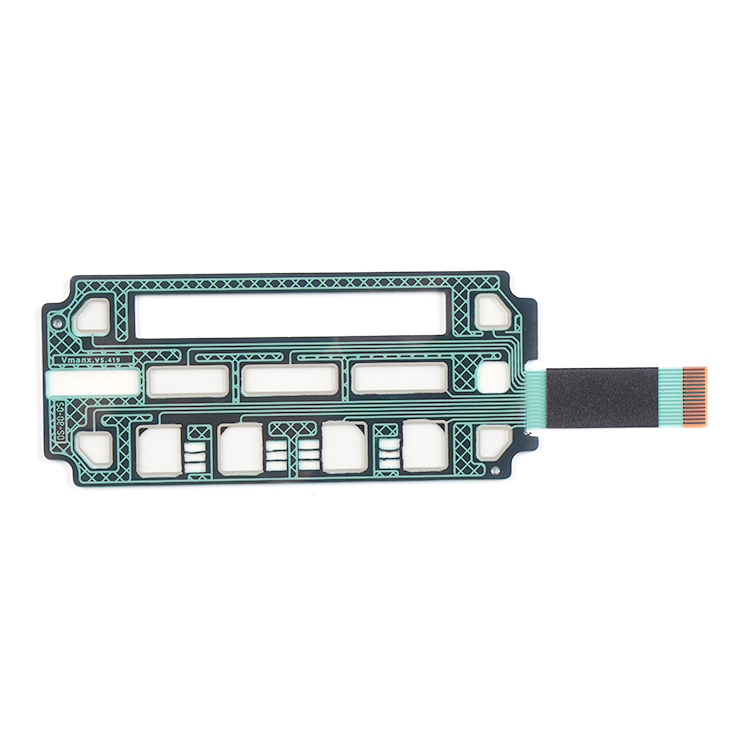

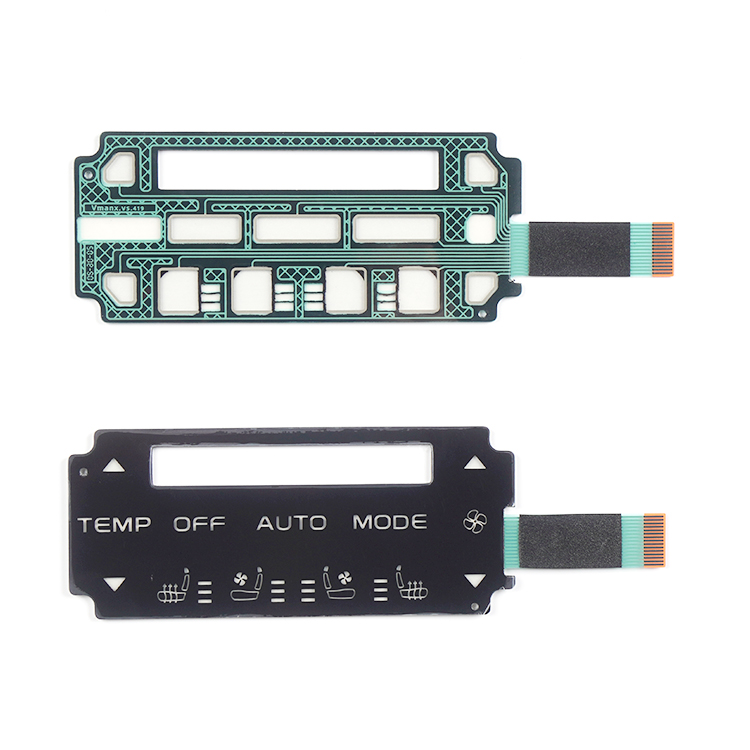

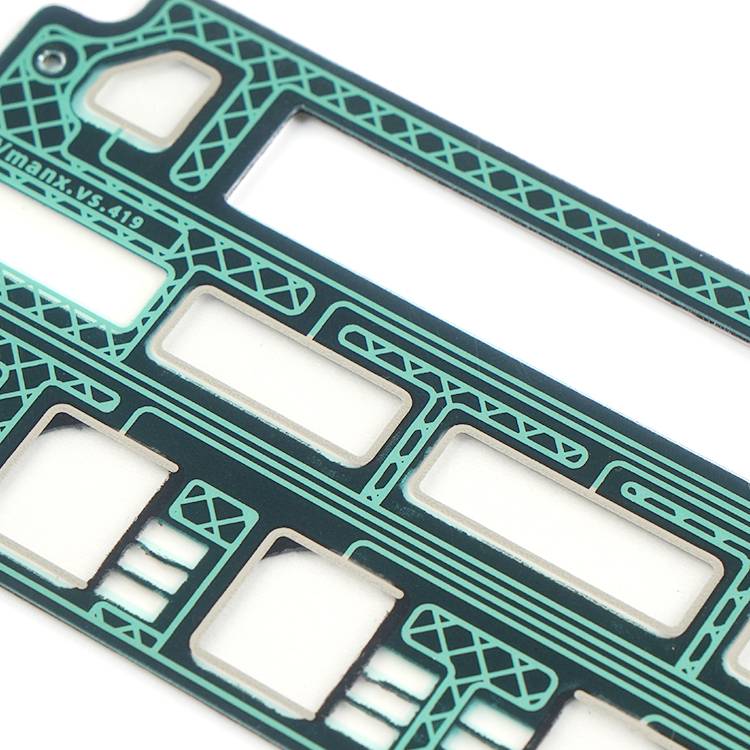

Automotive central control touch sensor

The Vmanx automotive central touch sensor has circuit flexibility and conductivity stability, as well as strong anti-interference ability, ultra strong protection, and a wide range of applications. It can achieve keyboard backlighting on curved surfaces and is used for capacitive user interface panels



1. Suitable for various substrates, including polyester (PET), polycarbonate, and glass, suitable for various applications that require durable, translucent circuits
2. Capable of touch sensing and proximity sensing driving, supporting capacitive touch, sliders, and drive wheels to meet a wide range of design requirements
3. Thin and clear conductive sensors, compared to other technologies, support backlighting technology and can save space.
4. Apply pressure sensitive adhesive (PSA) without the need for more expensive optical transparent adhesive (OCA). Standard PSA is an effective application method for PEDOT
5. Transparent circuits allow light to pass through them, resulting in capacitive key backlighting in the circuit
6. Flexible transparent conductive sensors can be implemented on curved surfaces, allowing for more refined design
7. Allowing low-temperature treatment and simplifying design to reduce overall production costs


Product specifications

Working voltage: ≤ 5.5VDC
Insulation resistance: ≥ 100MΩ
Circuit resistance: ≤100Ω
Working temperature: -40 ℃ -+80 ℃
Storage temperature: -45C+85C
Working humidity: 45% -85%


application program

Automobile (Control)

Central stack, door control, seat control
