Product Overview

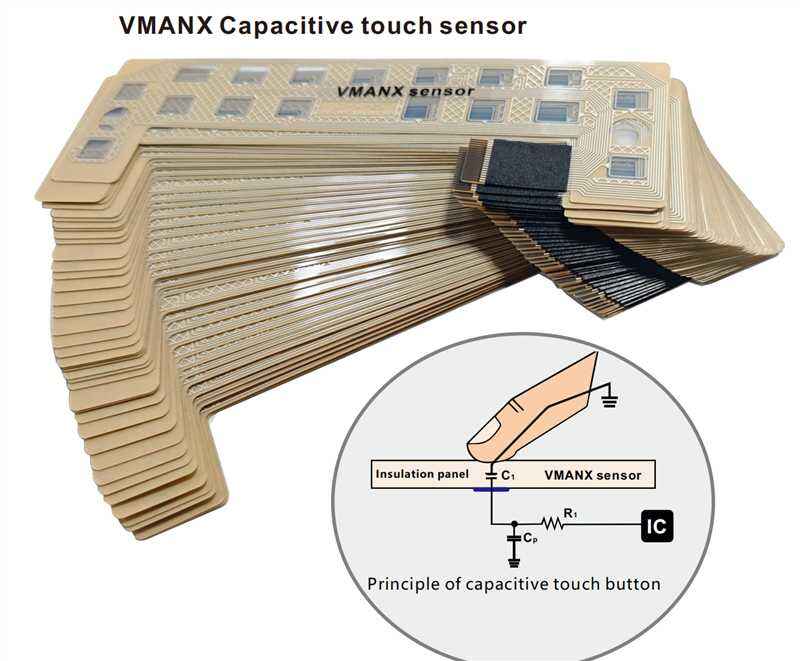

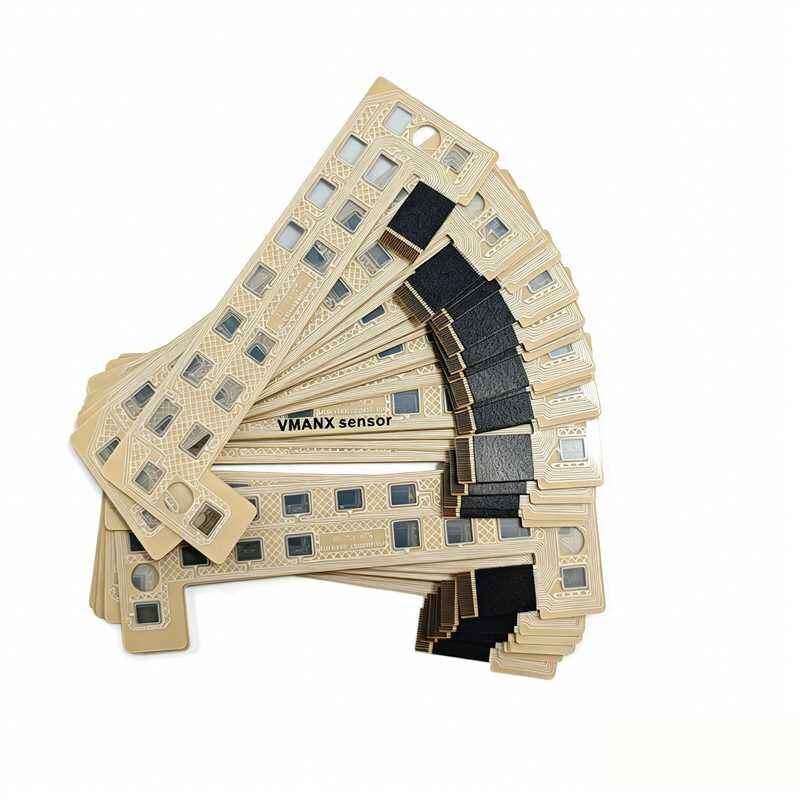

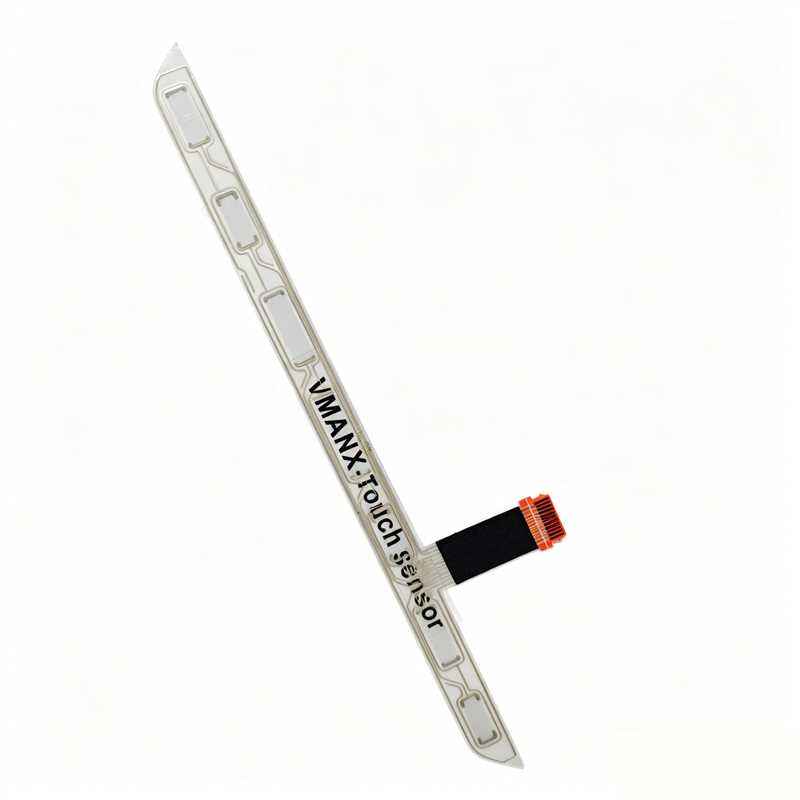

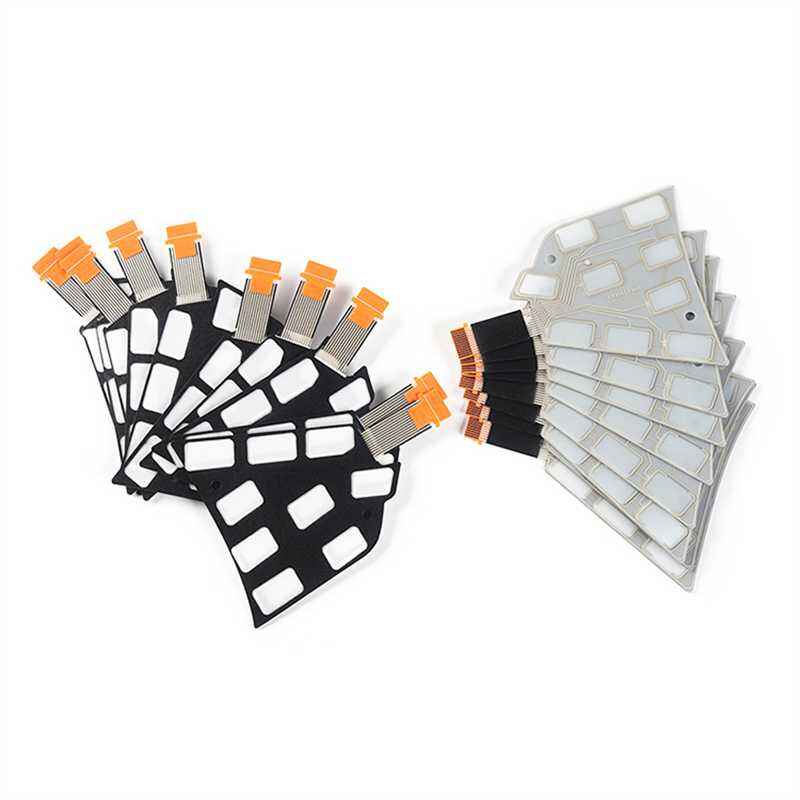

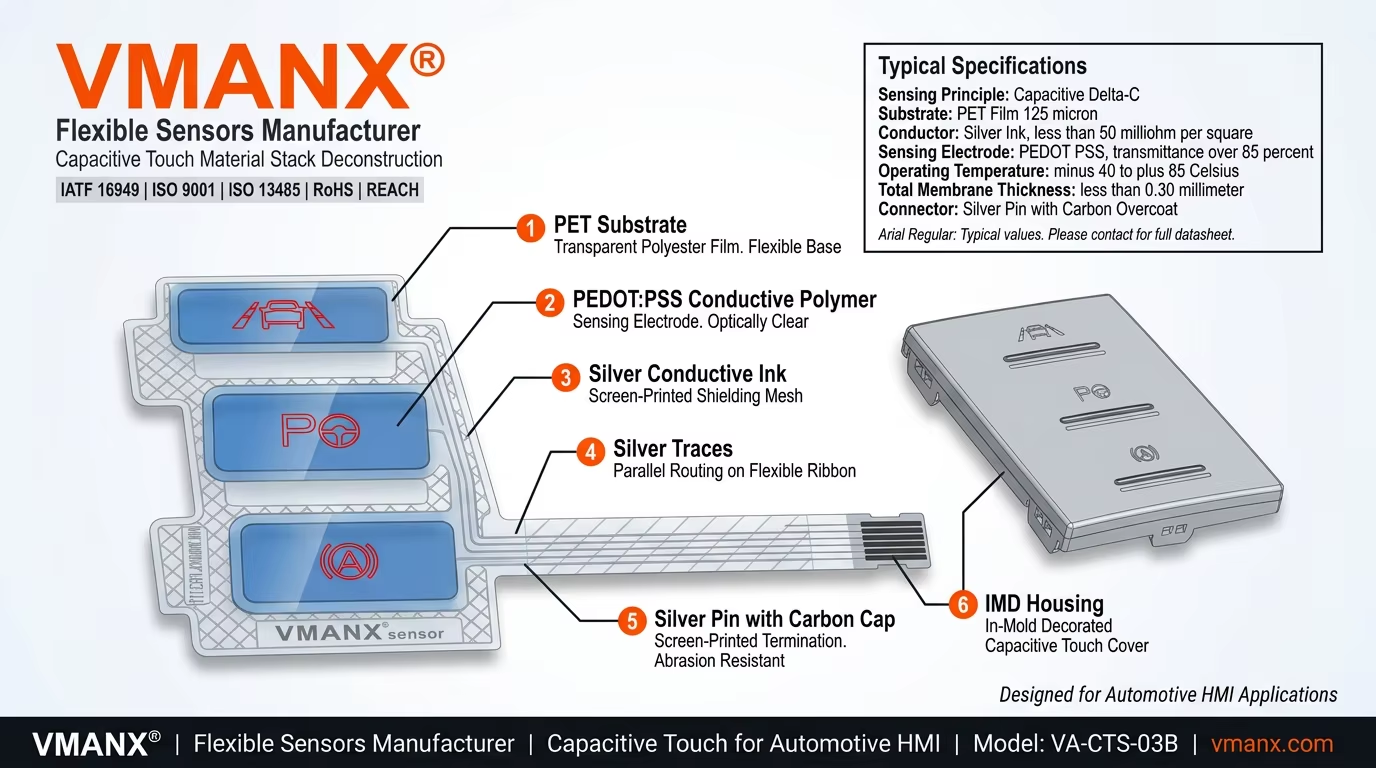

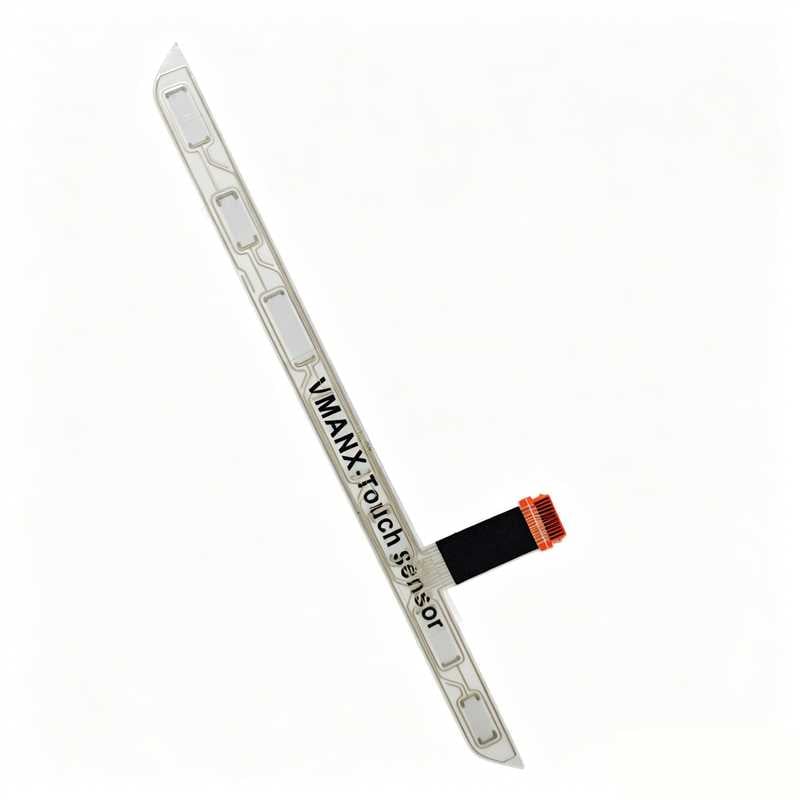

The VMANX Automotive Touch Film Sensor utilizes "Precision Electronic Printing Technolog"· Employing high-stability PET film as the substrate, combined with a multi-layer screen-printedstructure of silver conductive circuits, protective carbon layers, and transparent conductive ink(PEDOT:PSS). topped with a high-performance Optically Clear Adhesive (OCA).This product innovatively integrates custom-printed patterns with transparent capacitive sensingelectrodes, achieving a balance of functionality and aesthetics. Designed for demandingautomotive electronic environments,it meets automotive-grade reliability and eco-compliancestandards.
Integrated Visual & Touch Design
Custom patterns/logos (e.g., backlit icons, brand logos) can be directly printed on PET film,Simultaneously, the highly transparent PEDOT:PSS layer (transmittance >85%) enables precise capacitive touch sensing
Automotive-Grade Materials & Processes
Substrate: High-strength, temperature-resistant PET film (standard thickness: 125um; options: 100um/188um).
Circuit Structure :Precision-printed silver conductive traces + protective carbon layer, ensuring superiorconductivity, oxidation resistance,and mechanical durability.
Transparent Electrode :Screen-printed PEDOT:PSS conductive ink, offering high transparency and stable conductivity.
Optical Lamination: High-transmittance, low-haze OCA with vacuum lamination for bubble/wrinkle-free performance.
Exceptional Environmental Resilience
Wide Operating Temperature : -40°C to +85°C (extendable to +105°C upon request).
High Humidity Resistance : Stable operation at 95% RH.
Weather Resistance : Passes UV aging, damp heat, thermal shock tests-no yellowing, cracking, or performance degradation.Chemical Resistance: Withstands automotive cleaners, sweat, oils, etc
Longevity :>10-year lifespan (per typical automotive use); validated via vibration, shock, and bend tests.Environmental Compliance
Meets VOC emission standards (e.g, GB/T 27630, VDA 270, ISO 12219) for cabin air quality.
Complies with RoHS, REACH, and other international regulations.
| Property | Specification | Test Standard/Condition |
| Structural | ||
| Substrate | PET(125μm std;100μm/188um optional) | -- |
| Total Thickness (indl, OCA) | ~200-350μm (customizable) | -- |
| Minimum Bending Radius | R5mm(dynamic), R3mm (static) | Bending Test |
| Pencil Hardness | ≥3H | ASTM D3363 |
| Adhesion | 5B | ASTM D3359 (Cross-cut) |
| Optical | ||
| Transmittance (Active Area) | ≥85% | ASTM D1003 |
| Haze | ≤2% | ASTM D1003 |
| Electrical | ||
| Sheet Resistance (PEDOT) | 300-1000 Ω/o (customizable) | 4-point probe |
| Line Resistance (Ag) | -- | |
| Insulation Resistance | ≥100 MΩ | IPC-TM-650 2.6.3 |
| Touch Sensitivity | Finger touch detectable (adjustable) | Client system definition |
| Response Time | <10ms | |
| Environmental | ||
| Operating Temperature | -40℃ to +85℃(std);-40'C to +105℃ (custom) | -- |
| Storage Temperature | -40℃~+105℃ | -- |
| Damp Heat Cycling | 95% RH,-40℃←+85℃,>500 cycles | IEC 60068-2-30 |
| High Temp/Humidity Storage | 85℃/85% RH,>1000 hours | IEC 60068-2-78 |
| Thermal Cycling | -40℃→+85℃,>500 cycles | IEC 60068-2-14 |
| UV Aging | >500k//㎡(no yellowing/cracking) | ISO 4892-3 |
| Salt Spray | 5% NaCl, 35°℃, >96 hours (no corrosion) | ISO 9227 |
| Chemical Resistance | ||
| Ethanol (15%) | >200 wipes (no damage) | GMW 3286 |
| Artificial Perspiration | >48 hours (no damage) | ISO 105-E04 |
| Mechanical Reliability | ||
| Vibration | 20-2000Hz,50m/s?,XYZaxes>24 hours | IEC 60068-2-64 |
| Shock | 50g,11ms, XYZ axes 3x | IEC 60068-2-27 |
| Bending Lifespan | >100,000(R=5mm,180°) | Client-defined |
| VOC/Odor | ||
| VOC Emissions Complies with automotive standards (e.g, | ||
| Odor Level ≤3.0 (target) VDA 270 | ||
Material & Performance Standards
· Compliant with relevant requirements of Technical Specifications for Paint Films in Automotive Electrical Equipment (e.g. LV 312-1).
· Compliant with Technical Specifications for Interior Lighting Fixtures in Automobiles (e.g, optical performance, durability).
· Compliant with Volatile Organic Compounds (VOC) Emission Requirements for Passenger Vehidles (eg. GB/T 27630, VDA 270, ISO 12219).
Quality Management System
· Certified under ATF16949 2016 (Automotive Quality Management System) ensuring ful compliance with the highest automotive industy standardsthroughout the entireprocess-from design and production to delivery.

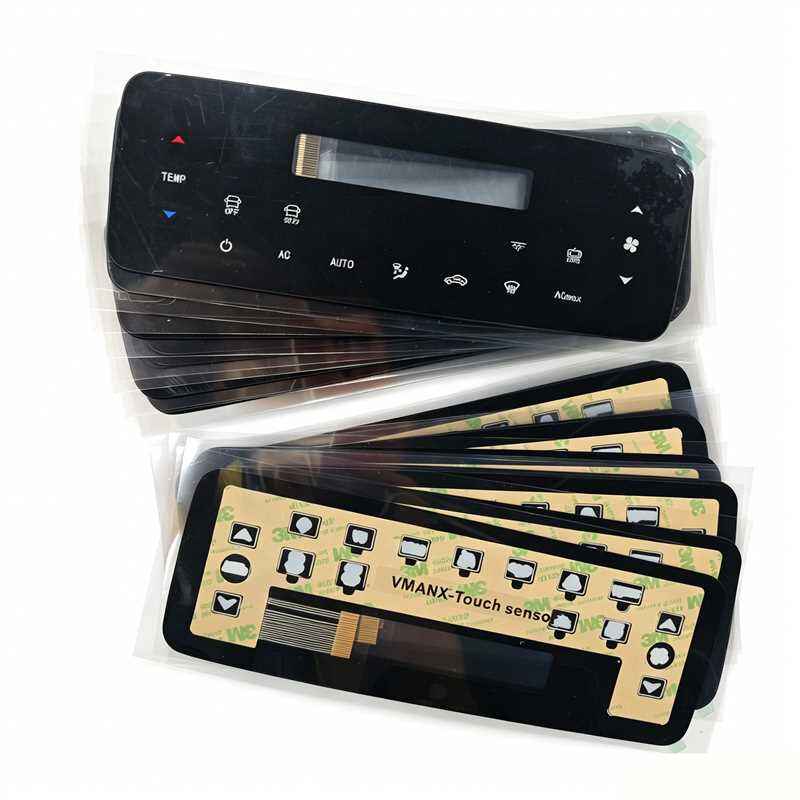

· Center console touch panels (AC/audio controls)
· Steering wheel multi-function touch buttons
· Door armrest/window control zones
· Overhead panels (reading lights, sunroof controls)
· Rear-seat entertainment systems
· Other interior touch interfaces with backlit icons
| Patterns/Logos: | Custom designs, icons, or text |
| Shape/Size: | Tailored to client specifications |
| Circuit Design: | Supports single/multi-touch, sliders, buttons |
| Interfaces: | FPC tail with ZIF/ACF options (pin definitions customizable) |
| OCA Option: | Varied thicknesses/viscosities for lamination needs |
| Extreme Environments: | Enhanced designs for harsh conditions. |
| Packaging: | Anti-static bags + rigid trays/reels to prevent bending/ESD. |
| Storage : | 10°C-30°C, 40%-70% RH, dark, corrosive-free. |
| Shelf Life : | 12 months (under specified conditions). |
