· The VMANX Automotive Touch Film Sensor utilizes "Precision Electronic Printing Technolog"

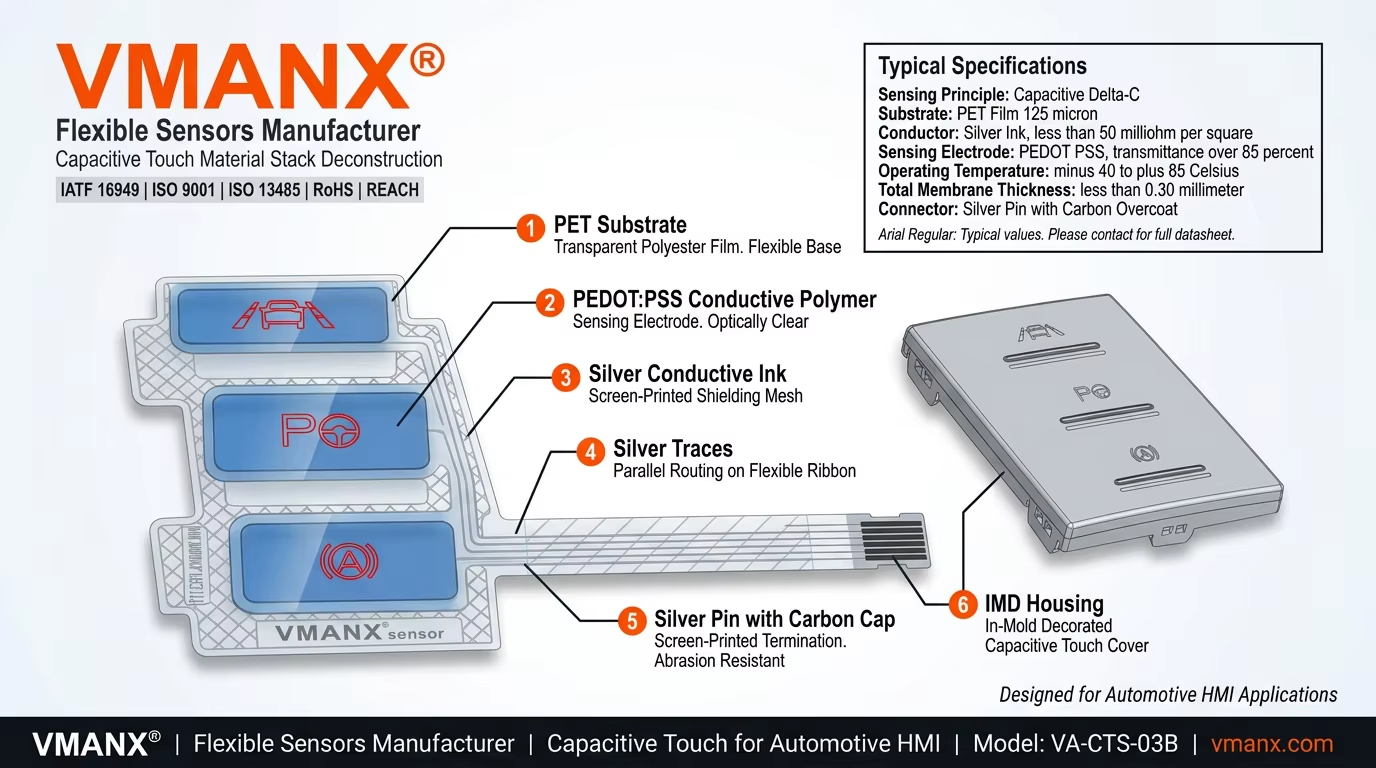

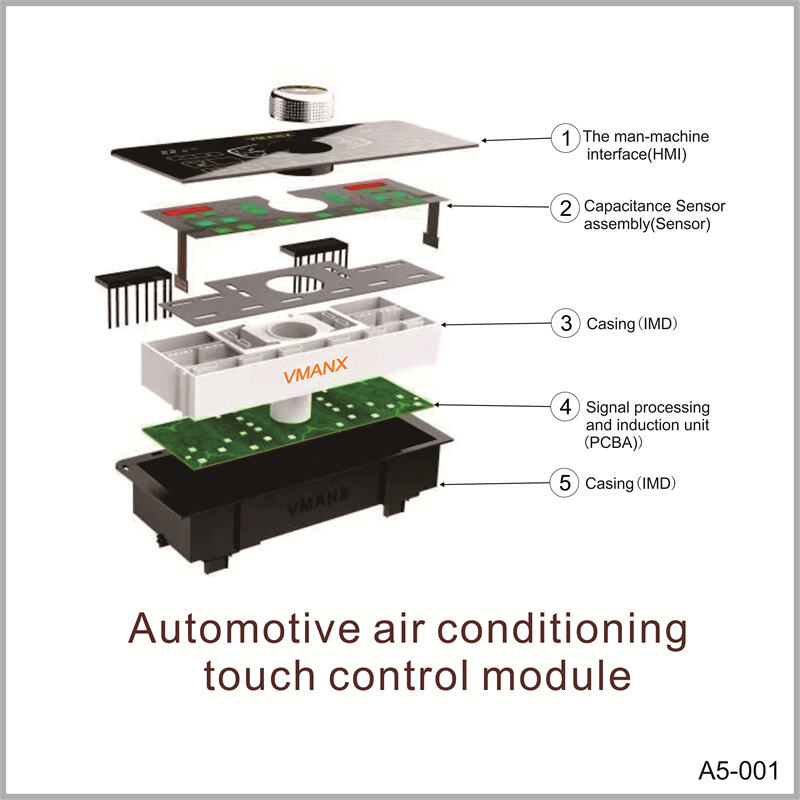

· Employing high-stability PET film as the substrate, combined with a multi-layer screen-printedstructure of silver conductive circuits, protective carbon layers, and transparent conductive ink(PEDOT:PSS), topped with a high-performance Optically Clear Adhesive (OCA).
· This product innovatively integrates custom-printed patterns with transparent capacitive sensingelectrodes, achieving a balance of functionality and aesthetics. Designed for demandingautomotive electronic environments,it meets automotive-grade reliability and eco-compliancestandards.
Core Technical Features
| Integrated Visual & Touch Design |
| Custom patterns/logos (e.g., backlit icons, brand logos) can be directly printed on PET film,Simultaneously, the highly transparent PEDOT:PSS layer (transmittance ≥85%) enables precise capacitive touch sensing. |
| Automotive-Grade Materials & Processes |
| Substrate : High-strength, temperature-resistant PET film (standard thickness: 125μm; options: 100um/188μm). |
| Circuit Structure : Precision-printed silver conductive traces + protective carbon layer, ensuring superiorconductivity, oxidation resistance, and mechanical durability. |
| Transparent Electrode :Screen-printed PEDOT:PSS conductive ink, offering high transparency and stable conductivity. |
| Optical Lamination:High-transmittance, low-haze OCA with vacuum lamination for bubble/wrinkle-free performance. |
| Exceptional Environmental Resilience |
| Wide Operating Temperature : -40℃ to +85℃ (extendable to +105°C upon request). |
| High Humidity Resistance : Stable operation at 95%RH. |
| Weather Resistance:Passes UV aging,damp heat,thermal shock tests-no yellowing, cracking, or performance degradation. |
| Chemical Resistance: Withstands automotive cleaners, sweat, oils, etc. |
| Longevity :>10-year lifespan (per typical automotive use); validated via vibration, shock, and bend tests. |
| Environmental Compliance |
| Meets VOC emission standards (e.g., GB/T 27630, VDA 270, ISO 12219) for cabin air quality. |
| Complies with RoHS, REACH, and other international regulations. |
Key Performance Parameters
| Property | Specification | Test Standard/Condition |
| Structural | ||
| Substrate | PET(125μm std;100μm/188um optional) | -- |
| Total Thickness (indl, OCA) | ~200-350μm(customizable) | -- |
| Minimum Bending Radius | R5mm (dynamic), R3mm (static) | Bending Test |
| Pencil Hardness | ≥3H | ASTM D3363 |
| Adhesion | 5B | ASTM D3359(Cross-cut) |
| Optical | ||
| Transmittance (Active Area) | ≥85% | ASTM D1003 |
| Haze | ≤2% | ASTM D1003 |
| Electrical | ||
| Sheet Resistance (PEDOT) | 300-1000 Ω/o (customizable) | 4-point probe |
| Line Resistance (Ag) | -- | |
| Insulation Resistance | ≥100 MQ | IPC-TM-650 2.6.3 |
| Touch Sensitivity | Finger touch detectable (adjustable) | Client system definition |
| Response Time | <10ms | |
| Environmental | ||
| Operating Temperature | -40℃ to +85*℃ (std);-40℃ to +105℃ (custom) | -- |
| Storage Temperature | -40℃~+105℃ | -- |
| Damp Heat Cycling | 95% RH,-40℃→+85℃,>500 cycles | IEC 60068-2-30 |
| High Temp/Humidity Storage | 85℃/85% RH, >1000 hours | IEC 60068-2-78 |
| Thermal Cycling | -40℃→+85℃,>500 cycles | IEC 60068-2-14 |
| UV Aging | >500 kl/㎡(no yellowing/cracking) | ISO 4892-3 |
| Salt Spray | 5% NaCl, 35°C, >96 hours (no corrosion) | ISO 9227 |
| Chemical Resistance | ||
| Ethanol (15%) | >200 wipes (no damage) | GMW 3286 |
| Artificial Perspiration | >48 hours (no damage) | ISO 105-E04 |
| Mechanical Reliability | ||
| Vibration | 20-2000Hz,50m/s?,XYZ axes>24 hours | IEC 60068-2-64 |
| Shock | 50g, 11ms, XYZ axes 3x | IEC 60068-2-27 |
| Bending Lifespan | >100,000(R=5mm,180°) | Client-defined |
| VOC/Odor | ||
| VOC Emissions | Complies with automotive standards (e.g. | VDA 278, ISO 12219 |
| Odor Level | ≤3.0(target) | VDA 270 |
Material & Performance Standards
· Compliant with relevant requirements of Technical Specifications for Paint Fims in Automotive Electrical Equipment (e.g, LV 312-1).
· Compliant with Technical Specifications for Interior Lighting Foxtures in Automobiles (e.g, optical performance, durability)
· Compliant with Volatile Organic Compounds (VOC Emission Requirements for Passenger Vehides (e g. GB/T 27630, VDA 270, I50 12219)
Quality Management System
· Certified under IATF 16949.2016 (Automotive Quality Management Sytem, ensuring ful complance with the highest automotive industy standards throughout the entireprocess-from design and production to delivery.

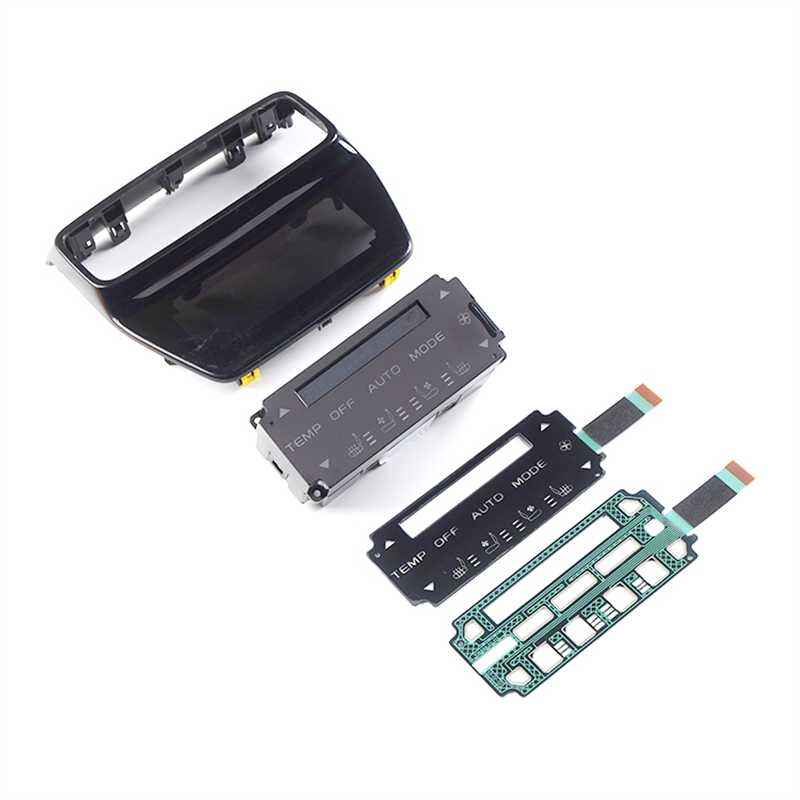

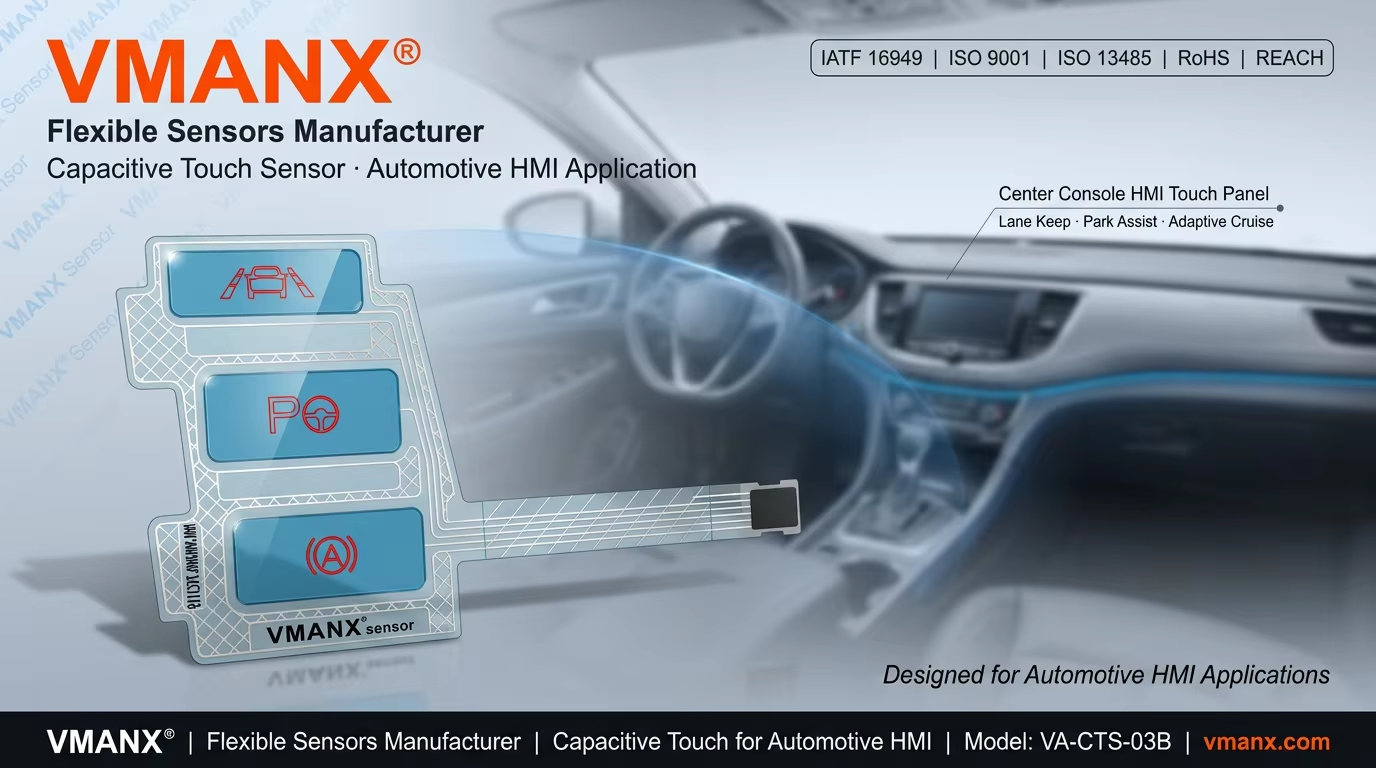

· Center console touch panels (AC/audio controls)
· Steering wheel multi-function touch buttons
· Door armrest/window control zones
· Overhead panels (reading lights, sunroof controls)
· Rear-seat entertainment systems
· Other interior touch interfaces with backlit icons
| Patterns/Logos | Custom designs, icons, or text. |
| Shape/Size | Tailored to client specifications. |
| Circuit Design | Supports single/multi-touch, sliders, buttons. |

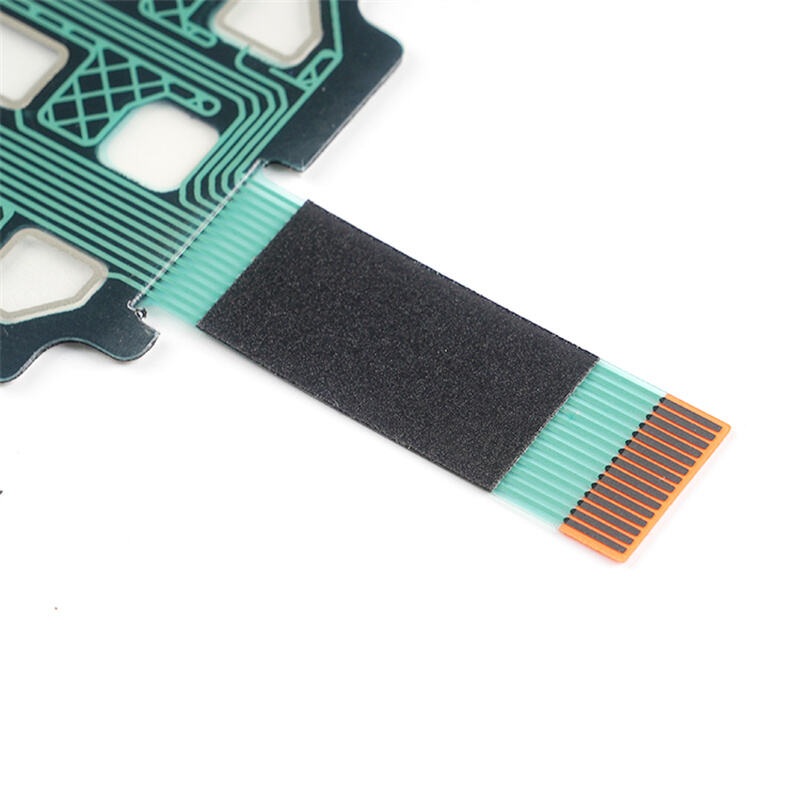

| Interfaces | FPC tail with ZIF/ACF options (pin definitions customizable). |
| OCA Option | Varied thicknesses/viscosities for lamination needs. |
| Extreme Environments | Enhanced designs for harsh conditions. |
| Packaging | Anti-static bags + rigid trays/reels to prevent bending/ESD. |
| Storage | 10°C-30°C, 40%-70% RH, dark, corrosive-free. |
| Shelf Life | 12 months (under specified conditions). |
